T351B475K016AT

Active

KEMET

CAPACITOR,4.7UF,16VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAPACITOR,4.7UF,16VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T351B475K016AT

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	5 Ohm
Features	General Purpose
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.177 "
Size / Dimension [diameter]	4.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	16 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Lead Spacing	Lead Spacing	Type	Features	Capacitance	Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Voltage - Rated
KEMET T351B475K016AT	0.177 "	4.5 mm	-55 °C	125 °C	Radial	0.1 in	2.54 mm	Conformal Coated	General Purpose	4.7 µF	10 %	Through Hole	5 Ohm	B	16 V
KEMET T351B105K050AT	0.177 "	4.5 mm	-55 °C	125 °C	Radial	0.1 in	2.54 mm	Conformal Coated	General Purpose	1 µF	10 %	Through Hole	8 Ohm	B	50 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

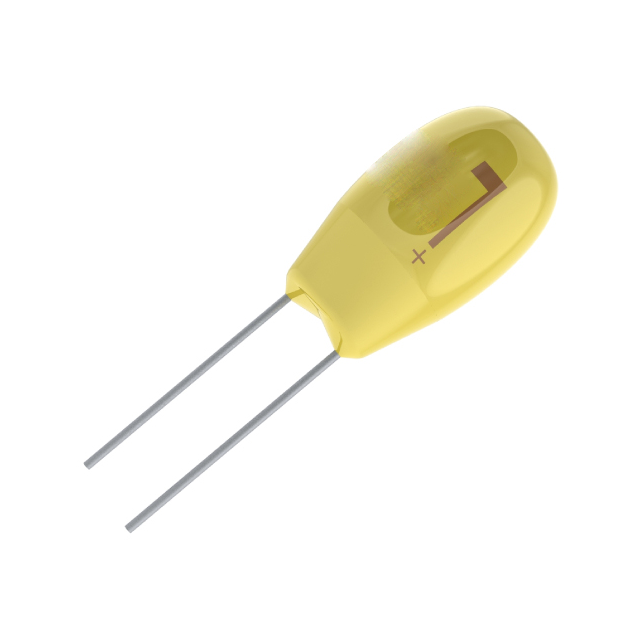

4.7 µF Conformal Coated Tantalum Capacitors 16 V Radial 5Ohm @ 100kHz

Technical documentation and resources
