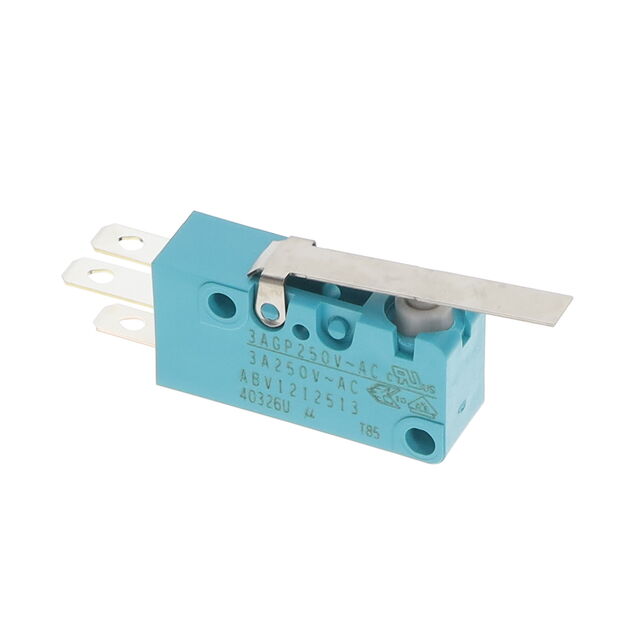

ABV1212513

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ABV1212513

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 250V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABV1212513	ABV121 Series

Actuator Type	Lever, Straight	Roller, Lever, Round (Pin Plunger), Lever, Straight, Simulated Roller
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	1 - 5 A
Differential Travel	0.047 in	0.016 - 0.047 in
Differential Travel	1.2 mm	0.4 - 1.2 mm
Electrical Life	100000 Cycles	100000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	120 gf	100 - 320 gf
Operating Position	15.3 mm	14.7 - 20.7 mm
Operating Position	0.602 "	0.579 - 0.815 in
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.2 mm	0.76 - 1.2 mm
Overtravel	0.047 "	0.03 - 0.047 in
Pretravel	3.2 mm	3.2 mm
Pretravel	0.125 in	0.125 - 1.6 mm
Pretravel	-	0.063 in
Release Force	13 gf	13 - 60 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder, Quick Connect	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in	0.187 - 4.7 mm
Voltage Rating - AC	250 V	250 V

ABV121 Series

SWITCH SNAP ACTION SPDT 3A 250V

Part	Operating Position	Operating Position	Actuator Type	Electrical Life	Differential Travel	Differential Travel	Switch Function	Overtravel	Overtravel	Mounting Type	Termination Style	Termination Style	Pretravel	Pretravel	Release Force	Voltage Rating - AC	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mechanical Life	Current Rating (Amps)	Circuit	Pretravel
Panasonic Electric Works ABV1215619	20.7 mm	0.815 in	Lever, Roller	100000 Cycles	0.5 mm	0.02 in	On-Mom	0.76 mm	0.03 in	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm	0.063 in	1.6 mm	60 gf	250 V	320 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT
Panasonic Electric Works ABV1210519	14.7 mm	0.579 in	Round (Pin Plunger)	100000 Cycles	0.4 mm	0.016 "	On-Mom	0.76 mm	0.03 in	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm	0.063 in	1.6 mm		250 V	200 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT
Panasonic Electric Works ABV1212603	15.3 mm	0.602 "	Lever, Straight	100000 Cycles	1.2 mm	0.047 in	On-Mom	1.2 mm	0.047 "	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm		0.125 in	20 gf	250 V	180 gf	85 °C	-40 °C	IP50	5000000 Cycles	5 A	SPDT	3.2 mm
Panasonic Electric Works ABV1212513	15.3 mm	0.602 "	Lever, Straight	100000 Cycles	1.2 mm	0.047 in	On-Mom	1.2 mm	0.047 "	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm		0.125 in	13 gf	250 V	120 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT	3.2 mm
Panasonic Electric Works ABV1210613	14.7 mm	0.579 in	Round (Pin Plunger)	100000 Cycles	0.4 mm	0.016 "	On-Mom	0.76 mm	0.03 in	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm	0.063 in	1.6 mm	60 gf	250 V	300 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT
Panasonic Electric Works ABV1216613	20.7 mm	0.815 in	Lever, Roller	100000 Cycles	1.2 mm	0.047 in	On-Mom	1.2 mm	0.047 "	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm		0.125 in	20 gf	250 V	180 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT	3.2 mm
Panasonic Electric Works ABV1212503	15.3 mm	0.602 "	Lever, Straight	100000 Cycles	1.2 mm	0.047 in	On-Mom	1.2 mm	0.047 "	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm		0.125 in	13 gf	250 V	120 gf	85 °C	-40 °C	IP50	5000000 Cycles	5 A	SPDT	3.2 mm
Panasonic Electric Works ABV1210618	14.7 mm	0.579 in	Round (Pin Plunger)	100000 Cycles	0.4 mm	0.016 "	On-Mom	0.76 mm	0.03 in	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm	0.063 in	1.6 mm	60 gf	250 V	300 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT
Panasonic Electric Works ABV1216619	20.7 mm	0.815 in	Lever, Roller	100000 Cycles	1.2 mm	0.047 in	On-Mom	1.2 mm	0.047 "	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm		0.125 in	20 gf	250 V	180 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT	3.2 mm
Panasonic Electric Works ABV1210513	14.7 mm	0.579 in	Round (Pin Plunger)	100000 Cycles	0.4 mm	0.016 "	On-Mom	0.76 mm	0.03 in	Chassis Mount	Quick Connect, Solder	0.187 in, 4.7 mm	0.063 in	1.6 mm		250 V	200 gf	85 °C	-40 °C	IP50	5000000 Cycles	3 A	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.94
		10	$ 5.55
		25	$ 5.28
		50	$ 5.14
		100	$ 4.44
		250	$ 4.17
		500	$ 3.96
		1000	$ 3.82

Description

General part information

ABV121 Series

Switch SPDT Chassis Mount
