1484-1511-000

Active

Radiall USA, Inc.

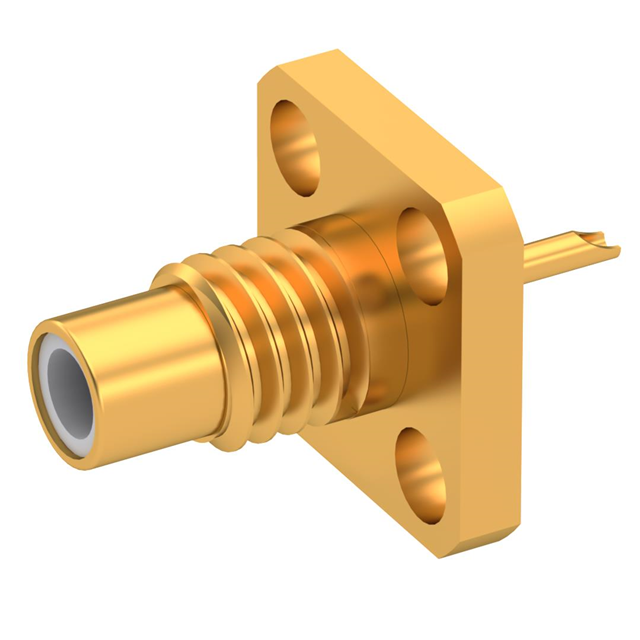

SMC / STRAIGHT JACK MALE GOLD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	1484-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMC / STRAIGHT JACK MALE GOLD

Part	Mounting Feature	Connector Style	Housing Color	Center Contact Material	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Impedance	Dielectric Material	Connector Type	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Body Material	Shield Termination	Body Finish	Number of Ports
Radiall USA, Inc. 1484-1511-000	Flange	SMC	Gold	Brass	10 GHz	Solder Cup	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	500	-65 ░C	165 °C	0.25 dB	Brass	Solder	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.95

General part information

SMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
