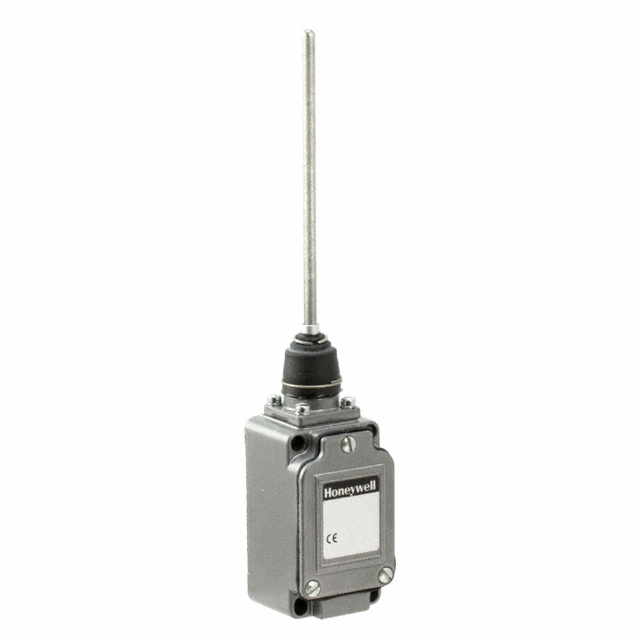

8LS1-4C

Obsolete

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 10A 120V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 10A 120V

Part	Switch Function	Actuator Type	Operating Force	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Ingress Protection	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Circuit	Operating Position	Operating Position	Termination Style
Honeywell Sensing and Control EMEA 8LS1-4C	On-Mom	Flexible Cable	141 gf	120 V	-29 °C	71 °C	28.6 mm	1.125 in	IP67 - Dust Tight, Waterproof	10 A, 800 mA	115 V	Chassis Mount	SPDT (DB/DM)	1.125 in	28.6 mm	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT (DB/DM) Chassis Mount
