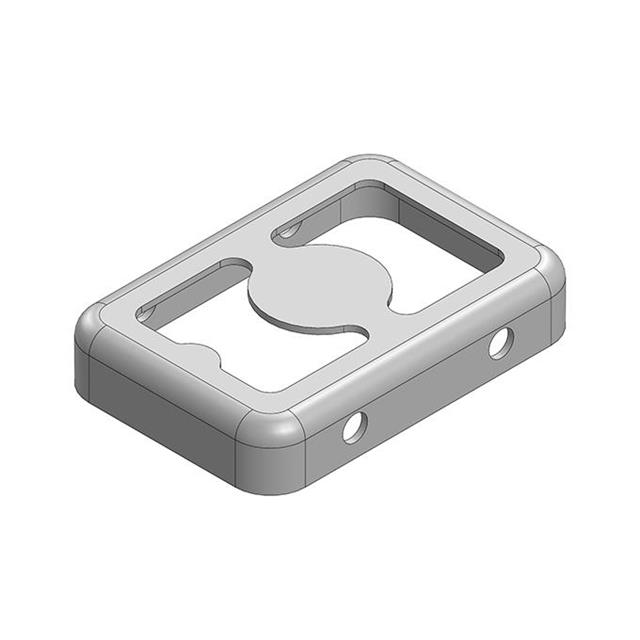

MS108-10F-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.291"X0.425" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS108-10F-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.291"X0.425" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS108-10F-NS | MS108 Series |
|---|---|---|
| Height - Overall [z] | 0.079 in | 0.079 in |
| Height - Overall [z] | 2 mm | 2 mm |
| Length - Overall | - | 0.441 in |
| Length - Overall | - | 11.2 mm |
| Length - Overall [x] | 0.425 in | 0.425 in |
| Length - Overall [x] | 10.8 mm | 10.8 mm |
| Mounting Type | Solder | Solder, Snap Fit |
| Type | Frame | Frame, Shield, 1-Piece, Cover |
| Ventilation | - | Non-Vented |
| Width - Overall | 7.4 mm | 7.4 mm |
| Width - Overall | - | 7.8 mm |
| Width - Overall | - | 0.307 " |
| Width - Overall [x] | 0.291 " | 0.291 " |
MS108 Series
RF SHIELD 0.291"X0.425" SOLDER
| Part | Width - Overall [x] | Width - Overall | Height - Overall [z] | Height - Overall [z] | Type | Length - Overall [x] | Length - Overall [x] | Mounting Type | Ventilation | Length - Overall | Length - Overall | Width - Overall [y] | Width - Overall [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Masach Tech Ltd. MS108-10F-NS | 0.291 " | 7.4 mm | 0.079 in | 2 mm | Frame | 0.425 in | 10.8 mm | Solder | |||||
Masach Tech Ltd. MS108-10S-NS | 0.291 " | 7.4 mm | 0.079 in | 2 mm | Shield, 1-Piece | 0.425 in | 10.8 mm | Solder | Non-Vented | ||||
Masach Tech Ltd. MS108-10F | 0.291 " | 7.4 mm | 0.079 in | 2 mm | Frame | 0.425 in | 10.8 mm | Solder | |||||
Masach Tech Ltd. MS108-10C-NS | 0.079 in | 2 mm | Cover | Snap Fit | Non-Vented | 0.441 in | 11.2 mm | 7.8 mm | 0.307 " | ||||
Masach Tech Ltd. MS108-10C | 0.079 in | 2 mm | Cover | Snap Fit | Non-Vented | 0.441 in | 11.2 mm | 7.8 mm | 0.307 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.08 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.13 | |||
| 168 | $ 0.84 | |||
| 336 | $ 0.77 | |||
| 504 | $ 0.73 | |||
| 1008 | $ 0.68 | |||
| 2520 | $ 0.62 | |||
| 5040 | $ 0.58 | |||
Description
General part information
MS108 Series
RF Shield Frame 0.291" (7.40mm) X 0.425" (10.80mm) Solder
