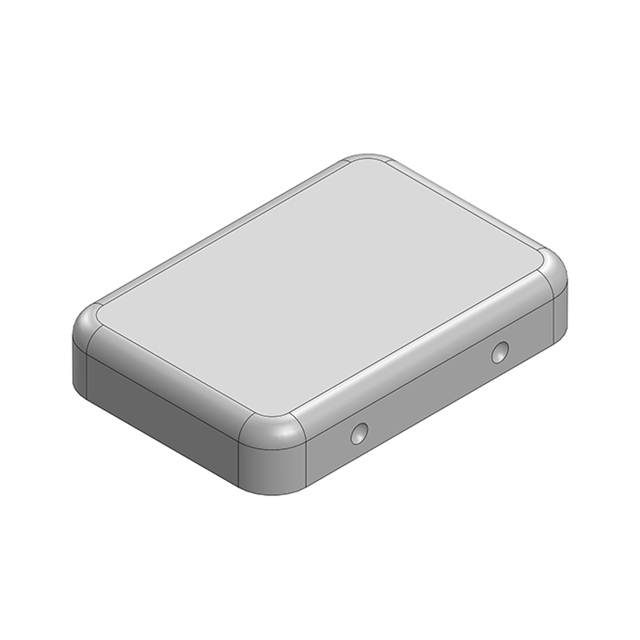

MS108-10C

Active

Masach Tech Ltd.

RF SHIELD 0.307X0.441" SNAP FIT

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.307X0.441" SNAP FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.291"X0.425" SOLDER

Part	Width - Overall [x]	Width - Overall	Height - Overall [z]	Height - Overall [z]	Type	Length - Overall [x]	Length - Overall [x]	Mounting Type	Ventilation	Length - Overall	Length - Overall	Width - Overall [y]	Width - Overall [y]
Masach Tech Ltd. MS108-10F-NS	0.291 "	7.4 mm	0.079 in	2 mm	Frame	0.425 in	10.8 mm	Solder
Masach Tech Ltd. MS108-10S-NS	0.291 "	7.4 mm	0.079 in	2 mm	Shield, 1-Piece	0.425 in	10.8 mm	Solder	Non-Vented
Masach Tech Ltd. MS108-10F	0.291 "	7.4 mm	0.079 in	2 mm	Frame	0.425 in	10.8 mm	Solder
Masach Tech Ltd. MS108-10C-NS			0.079 in	2 mm	Cover			Snap Fit	Non-Vented	0.441 in	11.2 mm	7.8 mm	0.307 "
Masach Tech Ltd. MS108-10C			0.079 in	2 mm	Cover			Snap Fit	Non-Vented	0.441 in	11.2 mm	7.8 mm	0.307 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Cover 0.307" (7.80mm) X 0.441" (11.20mm) Non-Vented Snap Fit
