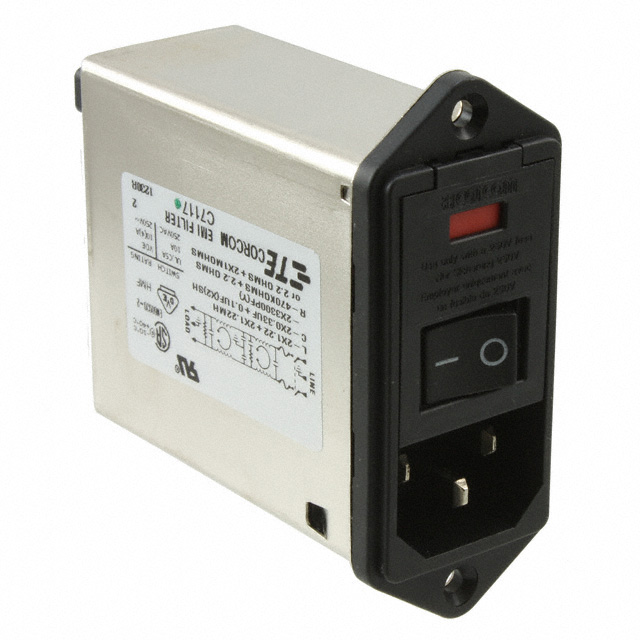

PM0S0DM6E

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PM0S0DM6E

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm
Panel Cutout Dimensions [y]	55.91 mm
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Switch Features	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Current Rating - Filter	Voltage Rating - Appliance Inlet	Connector Style	Current Rating - Appliance Inlet	Approval Agency	Fuse Holder, Drawer	Mounting Type	Filter Type	Accomodates a Fuse	Connector Type
TE Connectivity Corcom Filters PM0S0DM6E	Switch On-Off	0.187 "	4.7 mm	Quick Connect	55.91 mm	28.45 mm	Shielded	6 A	120 VAC	IEC 320-C14	6 A	CSA, UL, VDE	Fuse Holder, Twin Fused	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial		Receptacle, Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
