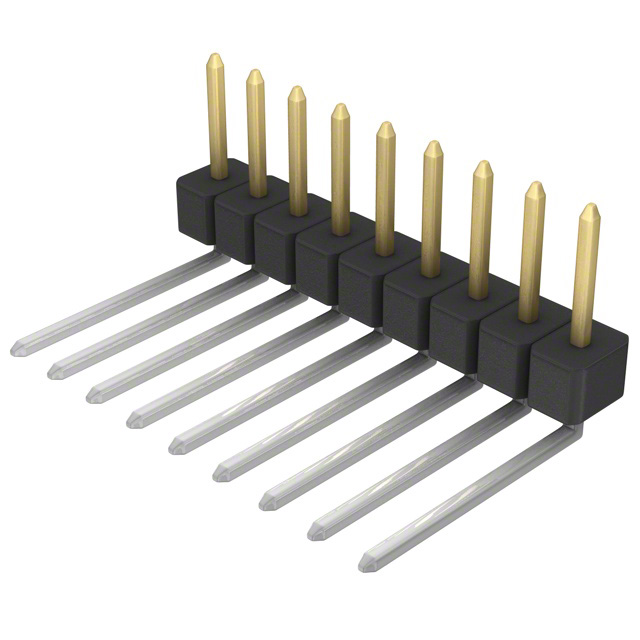

PBC09SBDN

Active

Sullins Connector Solutions

CONN HEADER R/A 9POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC09SBDN

Active

Sullins Connector Solutions

CONN HEADER R/A 9POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC09SBDN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.4 in
Contact Length - Post [x]	10.16 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC09 Series

Part	Number of Rows	Insulation Color	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Number of Positions Loaded	Shrouding	Termination	Connector Type	Number of Positions	Contact Shape	Contact Finish - Mating	Insulation Material	Overall Contact Length	Overall Contact Length	Contact Material	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PBC09SFAN	1	Black	Through Hole	0.318 "	8.08 mm	2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	9	Square	Gold	Polybutylene Terephthalate (PBT)	0.538 "	13.67 mm	Phosphor Bronze
Sullins Connector Solutions PBC09DAAN	2	Black	Through Hole	0.23 in		2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	18	Square	Gold	Polybutylene Terephthalate (PBT)	0.45 "	11.43 mm	Phosphor Bronze	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC09DFCN	2	Black	Through Hole	0.318 "	8.08 mm	2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm	0.32 in	8.13 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	18	Square	Gold	Polybutylene Terephthalate (PBT)	0.738 "	18.75 mm	Phosphor Bronze		2.54 mm	0.1 in
Sullins Connector Solutions PBC09DFAN	2	Black	Through Hole	0.318 "	8.08 mm	2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm	0.12 in	3.05 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	18	Square	Gold	Polybutylene Terephthalate (PBT)	0.538 "	13.67 mm	Phosphor Bronze		2.54 mm	0.1 in
Sullins Connector Solutions PBC09SBDN	1	Black	Through Hole Right Angle	0.23 in		2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.14 in	3.56 mm	0.4 in	10.16 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	9	Square	Gold	Polybutylene Terephthalate (PBT)			Phosphor Bronze	5.84 mm
Sullins Connector Solutions PBC09SAGN	1	Black	Through Hole	0.23 in		2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm	0.72 "	18.29 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	9	Square	Gold	Polybutylene Terephthalate (PBT)	1.05 in	26.67 mm	Phosphor Bronze	5.84 mm
Sullins Connector Solutions PBC09SFCN	1	Black	Through Hole	0.318 "	8.08 mm	2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm	0.32 in	8.13 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	9	Square	Gold	Polybutylene Terephthalate (PBT)	0.738 "	18.75 mm	Phosphor Bronze
Sullins Connector Solutions PBC09DAFN	2	Black	Through Hole	0.23 in		2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm			Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	18	Square	Gold	Polybutylene Terephthalate (PBT)	0.95 in	24.13 mm	Phosphor Bronze	5.84 mm	2.54 mm	0.1 in	0.62 in	15.75 mm
Sullins Connector Solutions PBC09SFBN	1	Black	Through Hole	0.318 "	8.08 mm	2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm			Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	9	Square	Gold	Polybutylene Terephthalate (PBT)	0.638 in	16.21 mm	Phosphor Bronze				0.22 in	5.58 mm
Sullins Connector Solutions PBC09SADN	1	Black	Through Hole	0.23 in		2.54 µm	100 µin	125 °C	-65 ░C	Tin	0.1 in	2.54 mm	10 çin	0.25 çm	Board to Board Cable	Male Pin	0.1 in	2.54 mm	0.42 in	10.67 mm	Push-Pull	UL94 V-0	3 A	All	Unshrouded	Solder	Breakaway Header	9	Square	Gold	Polybutylene Terephthalate (PBT)	0.75 in	19.05 mm	Phosphor Bronze	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.39
		10	$ 1.21
		100	$ 1.08
		500	$ 0.90
		1000	$ 0.77
		5000	$ 0.74

Description

General part information

PBC09 Series

Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
