Q-2J031000H001M

Active

Amphenol Custom Cable

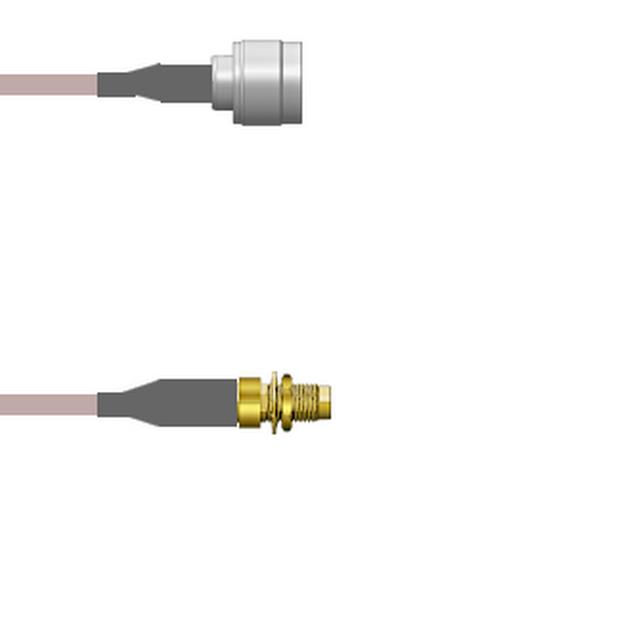

CBL ASSY SMA-NTYPE JACK-PLG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2J031000H001M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2J031000H001M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2J0310 Series

Part	Cable Type	Color	Style	Features	Overall Impedance	1st Connector Mounting Type	2nd Connector	1st Connector Mounting Feature	2nd Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	Length	Length	Length	1st Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-2J031000H003M	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	3 m	118.1 in	9.8 '	SMA Jack
Amphenol Custom Cable Q-2J031000H108i	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	2.7 m	108 in	9 ft	SMA Jack
Amphenol Custom Cable Q-2J031000H012i	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	304.8 mm	12 "		SMA Jack
Amphenol Custom Cable Q-2J031000H024i	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	609.6 mm	24 "		SMA Jack
Amphenol Custom Cable Q-2J031000H1.5M	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	1.5 m	59.1 in	4.9 ft	SMA Jack
Amphenol Custom Cable Q-2J031000H048i	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	1200 mm	48 in	4 ft	SMA Jack
Amphenol Custom Cable Q-2J031000H001M	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	1 m	39.4 in	3.3 ft	SMA Jack
Amphenol Custom Cable Q-2J031000H2.5M	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	2.5 m	98.4 in	8.2 '	SMA Jack
Amphenol Custom Cable Q-2J031000H0.5M	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female	50 cm	19.69 "		SMA Jack
Amphenol Custom Cable Q-2J031000H.25M	RG-142	Copper	SMA to N-Type	Shielded	50 Ohms	Panel Mount	N-Type Plug	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	11 GHz	Female				SMA Jack	9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 127.97
		25	$ 125.46
		50	$ 122.96
		100	$ 120.45
		250	$ 117.95

Description

General part information

Q-2J0310 Series

Cable Assembly Coaxial SMA to N-Type RG-142 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
