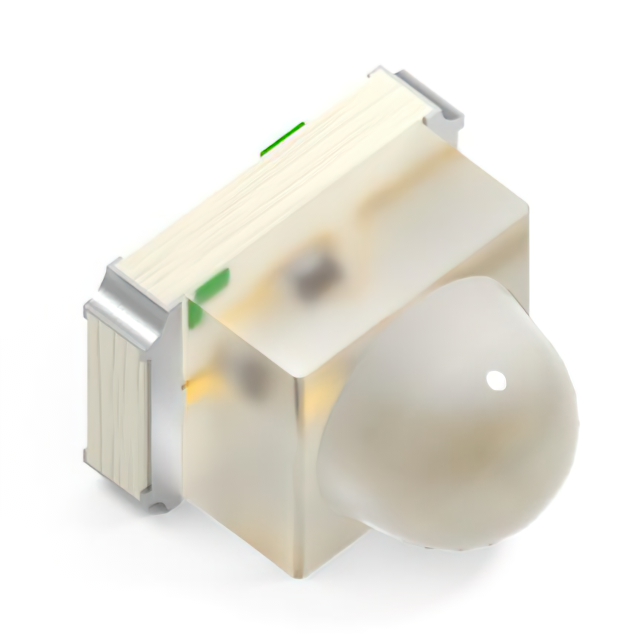

XZVG50W-2
ActiveSunLED
LED GREEN CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZVG50W-2
ActiveSunLED
LED GREEN CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZVG50W-2 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.9 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 397 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 10 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.26 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.26 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 2000 | $ 0.13 | ||
| 4000 | $ 0.12 | |||
| 6000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
| 14000 | $ 0.11 | |||
| 20000 | $ 0.11 | |||
| 50000 | $ 0.10 | |||
| 100000 | $ 0.10 | |||
Description
General part information
XZVG50 Series
Green 570nm LED Indication - Discrete 2.1V 2-SMD, No Lead
Documents
Technical documentation and resources
