89130-0103

Active

3M (TC)

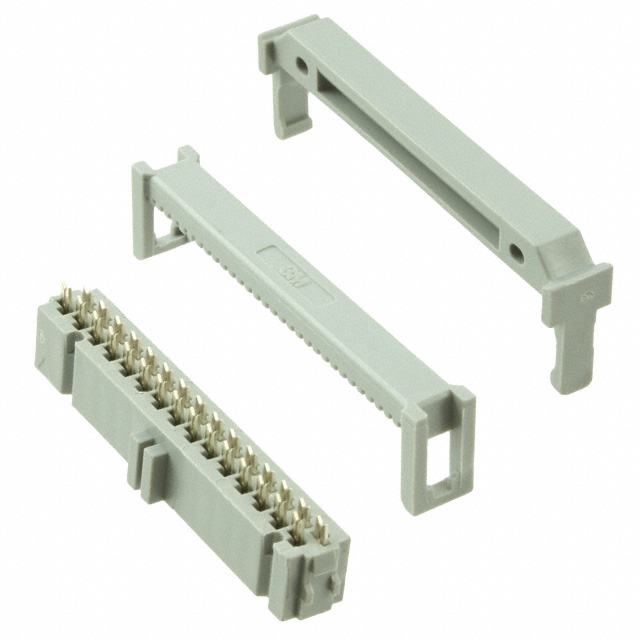

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 30 CONTACTS, CABLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 30 CONTACTS, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	89130-0103

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

Part	Mounting Type	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Cable Termination	Row Spacing [x]	Row Spacing	Wire Type	Color	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Connector Type
3M (TC) 89130-0103	Free Hanging (In-Line)	2	Gold	0.76 Ám	30 Áin	Feed Through Polarizing Key Strain Relief	IDC	0.1 in	2.54 mm	Ribbon Cable	Gray	Female Socket	2.54 mm	0.1 in	30	Receptacle
3M (TC) 89130-0101	Free Hanging (In-Line)	2	Gold	0.76 Ám	30 Áin	Feed Through Polarizing Key	IDC	0.1 in	2.54 mm	Ribbon Cable	Gray	Female Socket	2.54 mm	0.1 in	30	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
