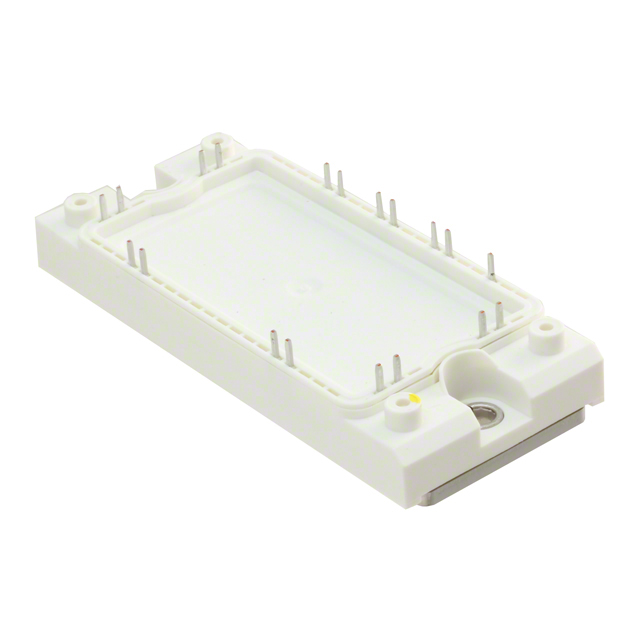

DDB6U134N16RRBOSA1

Unknown

Infineon Technologies

IGBT MOD 1600V 70A 500W

Search across all available documentation for this part.

Unknown

Infineon Technologies

IGBT MOD 1600V 70A 500W

Technical Specifications

Parameters and characteristics for this part

Specification	DDB6U134N16RRBOSA1

Configuration	Single
Current - Collector (Ic) (Max) [Max]	70 A
Current - Collector Cutoff (Max) [Max]	500 çA
IGBT Type	NPT
Input	Standard
Input Capacitance (Cies) @ Vce	5.1 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature	150 °C
Package / Case	Module
Power - Max [Max]	500 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.75 V
Voltage - Collector Emitter Breakdown (Max)	1600 V

Part	Input	Power - Max [Max]	Mounting Type	Operating Temperature	Package / Case	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	IGBT Type	Current - Collector (Ic) (Max) [Max]	Configuration	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies DDB6U134N16RRBOSA1	Standard	500 W	Chassis Mount	150 °C	Module	2.75 V	Module	1600 V	NPT	70 A	Single	5.1 nF	500 çA
Infineon Technologies DDB6U134N16RRB11BPSA1	Standard	400 W	Chassis Mount		Module	2.6 V	AG-ECONO2B			125 A	Single Chopper	5.1 nF	1 mA	1200 V	150 °C	-40 °C
Infineon Technologies DDB6U134N16RRBPSA1	Standard	500 W	Chassis Mount	150 °C	Module	2.75 V	AG-ECONO2B			70 A	Single Chopper	5.1 nF	500 çA	1200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module NPT Single 1600 V 70 A 500 W Chassis Mount Module
