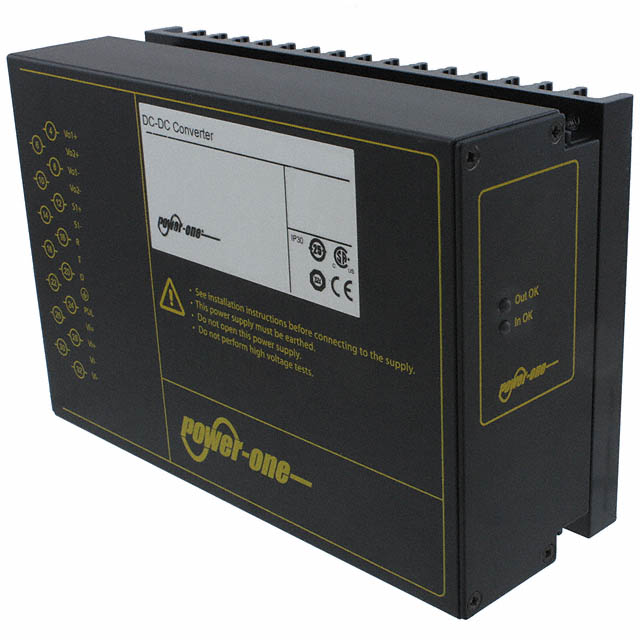

HR2320-9RG

Active

Bel Power Solutions

DC/DC CONVERTER 2X12V 240W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 2X12V 240W

Technical Specifications

Parameters and characteristics commom to parts in this series

MODULE DC-DC 150VIN 2-OUT 12V 20A 240W 15-PIN

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Number of Outputs	Type	Applications	Voltage - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Bel Power Solutions HR2320-9RB1G	150 V	16.8 V	94.5 %	Chassis Mount	5.51 "	47.2 mm	140 mm	168 mm	6.61 in	1.86 in	20 A	1	Conformal Coated, Enclosed	ITE (Commercial), Railway	12 V	cCSAus, CE, TUV	-40 °C	71 °C	240 W
Bel Power Solutions HR2320-9RG	150 V	16.8 V	94.5 %	Chassis Mount		80 mm	111 mm	168.5 mm				2	Conformal Coated, Enclosed	ITE (Commercial), Railway	12 V	CE, CSA, EN, IEC, TUV, UL			240 W	10 A	10 A	12 V	6.63 "	3.15 "	4.37 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated DC DC Converter 2 Output 12V 12V 10A, 10A 150V Input

Technical documentation and resources

No documents available
