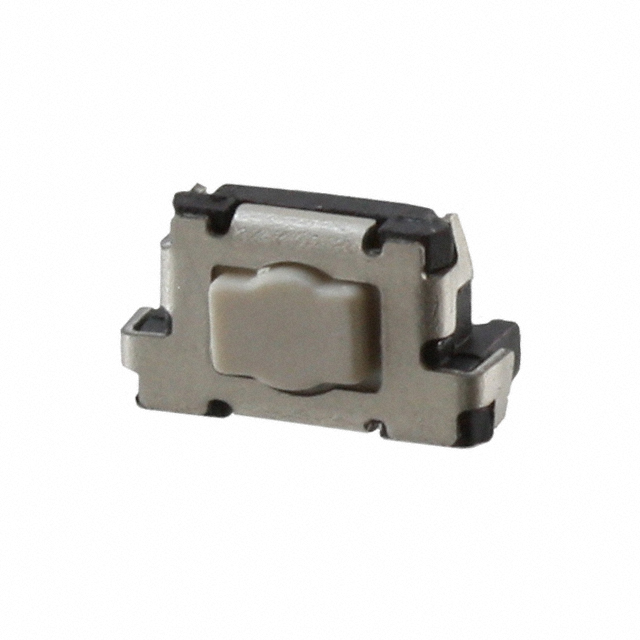

TL4100AF240QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL4100AF240QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL4100AF240QG |
|---|---|
| Actuator Length, Right Angle | 2 mm |
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Edge Mount, Right Angle |
| Operating Force | 240 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6.2 mm |
| Outline [y] | 2.5 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.15 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.01 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.91 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.01 | ||
| 10 | $ 0.97 | |||
| 25 | $ 0.91 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.62 | |||
| Tape & Reel (TR) | 2000 | $ 0.62 | ||
| 4000 | $ 0.56 | |||
| 6000 | $ 0.52 | |||
| 10000 | $ 0.49 | |||
Description
General part information
TL4100 Series
Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle
Documents
Technical documentation and resources
No documents available
