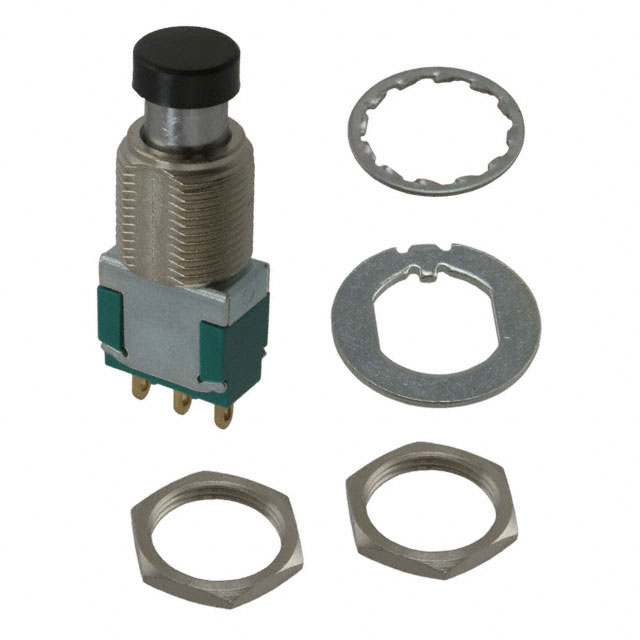

MPG106F

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 6A 125V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MPG106F

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Type	Switch Function	Mounting Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Actuator Marking	Termination Style	Circuit
TE Connectivity Raychem Cable Protection MPG106F	Black	125 V	Button Round	Standard	On-Mom	Panel Mount Rear	11.8 mm	-20 C	80 C	28 V	4 A 6 A	50000 Cycles	No Marking	Solder Lug	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
