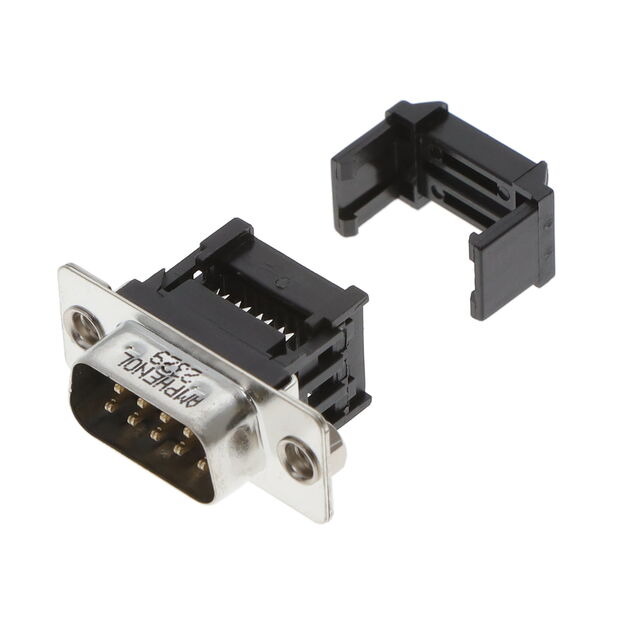

L17DEFRBA09P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS IDC

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	L17DEFRBA09P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Strain Relief, Grounding Indents, Feed Through
Flange Feature	Cable Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC
Wire Gauge	26 AWG

Part	Dielectric Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Contact Material	Features	Material Flammability Rating	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Connector Type	Mounting Type	Shell Material, Finish	Number of Positions	Current Rating (Amps)	Voltage Rating	Color	Connector Style	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17DEFRBA09SC309	Thermoplastic Glass Filled	2	-25 °C	85 °C	Signal	IDC Ribbon Cable	Phosphor Bronze	Feed Through Strain Relief	UL94 V-0	Gold	DE E	1	26 AWG	0.76 Ám	30 Áin	Cable Side (M3)	Receptacle Female Sockets	Free Hanging (In-Line)	Nickel Plated Steel	9	5 A	250 VDC	Black	D-Sub
Amphenol ICC (Commercial Products) L17DEFRBA09P	Thermoplastic Glass Filled	2	-55 °C	105 ░C	Signal	IDC Ribbon Cable	Brass	Feed Through Grounding Indents Strain Relief	UL94 V-0	Gold	DE E	1	26 AWG			Cable Side (M3)	Male Pins Plug	Free Hanging (In-Line)		9	3 A	250 VDC	Black	D-Sub	Flash
Amphenol ICC (Commercial Products) L17DEFRBA09PC309	Thermoplastic Glass Filled	2	-25 °C	85 °C	Signal	IDC Ribbon Cable	Brass	Feed Through Grounding Indents Strain Relief	UL94 V-0	Gold	DE E	1	26 AWG	0.76 Ám	30 Áin	Cable Side (M3)	Male Pins Plug	Free Hanging (In-Line)	Nickel Plated Steel	9	5 A	250 VDC	Black	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
