C274AC34500AA0J

Active

KEMET

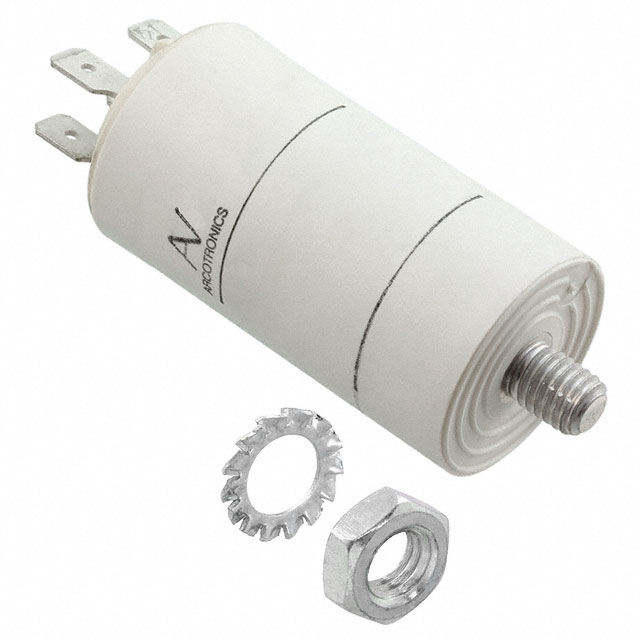

CAP FILM 5UF 5% 470VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC274AC34500AA0J Spec Datasheet

C274AC34500AA0J

Active

KEMET

CAP FILM 5UF 5% 470VAC RADIAL

Deep-Dive with AI

DocumentsC274AC34500AA0J Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C274AC34500AA0J

Applications	Motor Run
Capacitance	5 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	58.5 mm
Height - Seated (Max) [Max] [z]	2.303 in
Lead Spacing	13.4 mm
Lead Spacing	0.528 in
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Tolerance	5 %
Voltage Rating - AC	470 V

C274AC Series

Part	Termination	Termination	Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Tolerance	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET C274AC24200AA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	2.362 in	60 mm	2 µF	5 %	Chassis Stud Mount	0.394 in	10 mm	25 mm	0.984 "	Motor Run
KEMET C274AC35400AA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can			40 µF	5 %	Chassis Stud Mount	0.528 in	13.4 mm	50 mm	1.969 in	Motor Run	4.803 in	122 mm
KEMET C274AC35300SA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	3.799 "	96.5 mm	30 µF	5 %	Chassis Stud Mount	0.528 in	13.4 mm	45 mm	1.772 in	Motor Run
KEMET C274AC24800AA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	2.303 in	58.5 mm	8 µF	5 %	Chassis Stud Mount	0.394 in	10 mm	35 mm	1.378 in	Motor Run
KEMET C274AC24500AA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	2.303 in	58.5 mm	5 µF	5 %	Chassis Stud Mount	0.394 in	10 mm	30 mm	1.181 inches	Motor Run
KEMET C274ACH4700LG0J			Disconnect Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	2.323 in	59 mm	7 µF	5 %	Chassis Stud Mount			35 mm	1.378 in	Motor Run
KEMET C274AC34800SA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	2.303 in	58.5 mm	8 µF	5 %	Chassis Stud Mount	0.528 in	13.4 mm	35 mm	1.378 in	Motor Run
KEMET C274AC35400SA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can			40 µF	5 %	Chassis Stud Mount	0.528 in	13.4 mm	50 mm	1.969 in	Motor Run	4.843 in	123 mm
KEMET C274AC35150SA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	2.972 in	75.5 mm	15 µF	5 %	Chassis Stud Mount	0.528 in	13.4 mm	40 mm	1.575 "	Motor Run
KEMET C274AC34500AA0J	0.25 in	6.3 mm	Quick Connect	Metallized Polypropylene (PP)	-25 °C	85 °C	470 V	Radial Can	2.303 in	58.5 mm	5 µF	5 %	Chassis Stud Mount	0.528 in	13.4 mm	30 mm	1.181 inches	Motor Run

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.85
		10	$ 3.31
		50	$ 3.01
		110	$ 2.48
		550	$ 2.16
		1100	$ 2.00
		2530	$ 1.97
		5060	$ 1.93

Description

General part information

C274AC Series

5 µF Film Capacitor 470V Polypropylene (PP), Metallized Radial, Can
