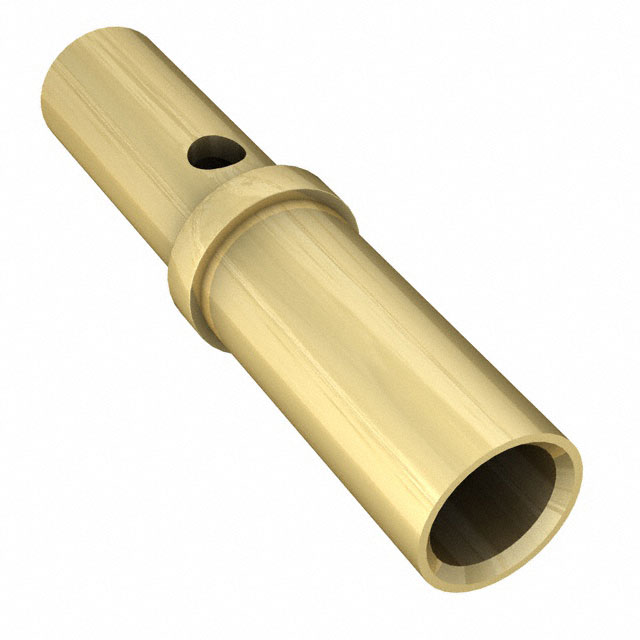

0716-0-33-15-23-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .045-.065 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0716-0-33-15-23-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.065 in |
| Accepts Pin Diameter [Max] | 1.65 mm |
| Accepts Pin Diameter [Min] | 0.045 in |
| Accepts Pin Diameter [Min] | 1.14 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 3.28 mm |
| Flange Diameter [diameter] | 0.129 in |
| Length - Overall [x] | 0.518 in |
| Length - Overall [x] | 13.16 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Socket Depth | 0.214 in |
| Socket Depth | 5.44 mm |
| Tail Type | Crimp |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.49 | |
| 10 | $ 1.30 | |||
| 100 | $ 1.16 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.83 | |||
| 5000 | $ 0.73 | |||
| 10000 | $ 0.72 | |||
Description
General part information
0716-0 Series
Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Crimp Solder
