726-040-520-201
ActiveEDAC Inc.

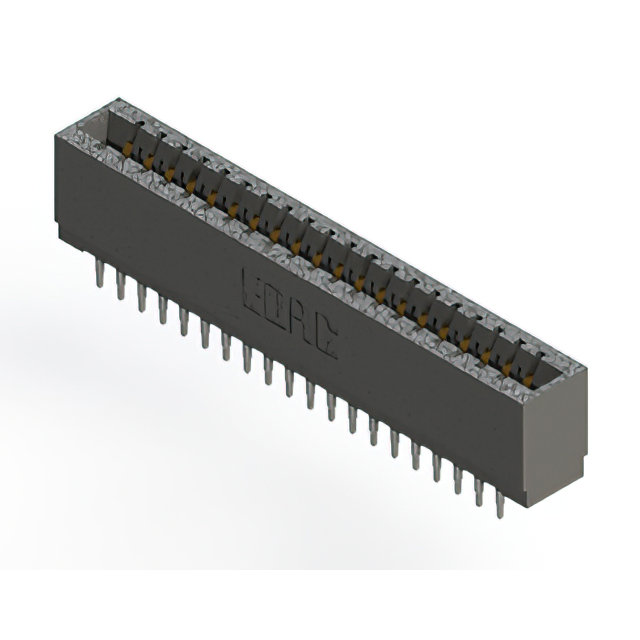

CONN EDGE DUAL FMALE 40POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
726-040-520-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 726-040-520-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
726-040 Series
| Part | Number of Positions | Card Type | Material - Insulation | Contact Finish | Termination Rows | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Read Out | Contact Type | Color | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 40 | Non Specified - Single Edge | Polyester Thermoplastic | Gold | 1 | Press-Fit Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Single | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 1 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | |||
EDAC Inc. | 40 | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 2 | Press-Fit Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | 20 | 20 | 20 | |
EDAC Inc. | 40 | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 2 | Press-Fit | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | 20 | 20 | 20 | |
EDAC Inc. | 40 | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 2 | Press-Fit | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | 20 | 20 | 20 | |
EDAC Inc. | 40 | Non Specified - Single Edge | Polyester Thermoplastic | Gold | 1 | Press-Fit | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Single | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 1 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | |||
EDAC Inc. | 40 | Non Specified - Dual Edge | Polyester Thermoplastic | Gold | 2 | Press-Fit Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | 20 | 20 | 20 | |
EDAC Inc. | 40 | Non Specified - Single Edge | Polyester Thermoplastic | Gold | 1 | Press-Fit Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Single | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 1 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | |||
EDAC Inc. | 40 | Non Specified - Single Edge | Polyester Thermoplastic | Gold | 1 | Press-Fit Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Single | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 1 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | |||
EDAC Inc. | 40 | Non Specified - Single Edge | Polyester Thermoplastic | Gold | 1 | Press-Fit | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Single | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 1 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | |||
EDAC Inc. | 40 | Non Specified - Single Edge | Polyester Thermoplastic | Gold | 1 | Press-Fit Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Single | Cantilever | Black | Female | 0.76 Ám | 30 Áin | 1 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 0.125 in | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 7.17 | |
Description
General part information
726-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
