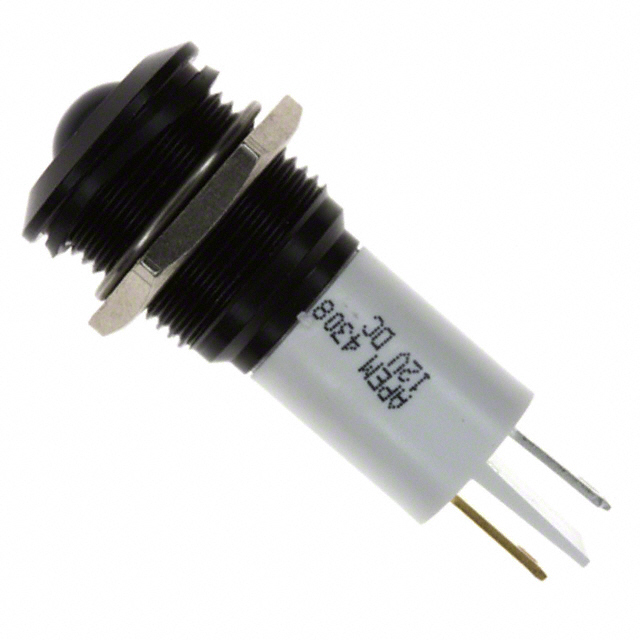

Q16P1BXXW24E

Active

APEM

LED PANEL MOUNT INDICATOR UNI-COLOR WHITE 350MCD 2-PIN

Search across all available documentation for this part.

Active

APEM

LED PANEL MOUNT INDICATOR UNI-COLOR WHITE 350MCD 2-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Lamp Color	Panel Cutout Shape	Termination Style	Viewing Angle	Ratings	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Lens Size [diameter]	Type	Lens Transparency	Ingress Protection	Lens Style	Millicandela Rating
APEM Q16P1BXXW12E	White	Round	Quick Connect - 0.110" (2.8mm)	100 °	DC	12 V	0.63 in	16 mm	White	10 mm	LED	Diffused	IP67	Round with Domed Top	1000 mcd
APEM Q16P1BXXW24E	White	Round	Quick Connect - 0.110" (2.8mm)	100 °	DC	24 V	0.63 in	16 mm	White	10 mm	LED	Diffused	IP67	Round with Domed Top	1000 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	4	$ 17.65
Digikey	Bulk	25	$ 19.91

General part information

LED Panel Indicator White Diffused 100° 24V 20mA Quick Connect - 0.110" (2.8mm)
