R124153003W

Active

Radiall USA, Inc.

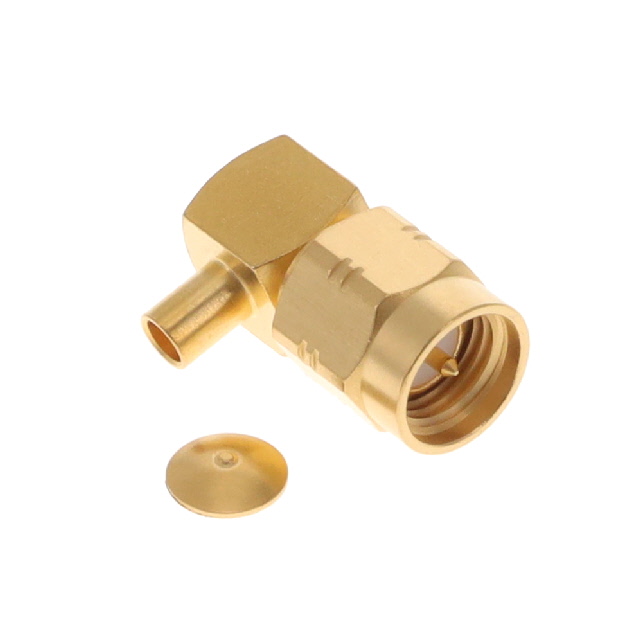

SMA / RIGHT ANGLE PLUG SOLDER TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE PLUG SOLDER TY

Technical Specifications

Parameters and characteristics for this part

Specification	R124153003W

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Connector Type	Connector Style	Body Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Housing Color	Center Contact Plating	Impedance	Mounting Type	Center Contact Material	Contact Termination	Shield Termination	Frequency - Max [Max]	Voltage Rating	Dielectric Material	Body Finish
Radiall USA, Inc. R124153003W	Male Pin Plug	SMA	Brass	RG-405 (.085" Semi Rigid)	-65 ░C	105 ░C	1	Gold	Gold	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Solder	Solder	12.4 GHz	335 V	Polytetrafluoroethylene (PTFE)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
