FL-B101Q-DCV

Active

Texmate

2V, 20V, 200VDC BARGRAPH CONTROL

Search across all available documentation for this part.

Active

Texmate

2V, 20V, 200VDC BARGRAPH CONTROL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 664.00

General part information

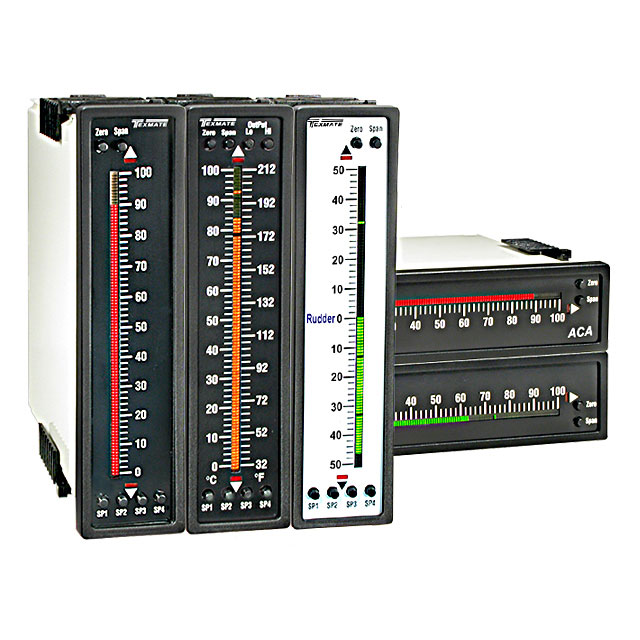

Process Meter LED - Red Bar Graph Display Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FL-B101Q-DCV	FL-B101Q Series

Display Type	LED - Red Bar Graph	LED - Red Bar Graph
Measuring Range [Max]	200 V	0.2 - 600 VDC
Measuring Range [Min]	2 VDC	0 - 200 VDC
Measuring Type	Process	Frequency, Current, Voltage, Process
Output Type	-	Relay (2), Analog
Panel Cutout Dimensions [x]	144.53 mm	144.53 mm
Panel Cutout Dimensions [y]	36.07 mm	36.07 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Process Meter	Frequency Meter, Ammeter, Voltmeter, Process Meter
Voltage - Supply [Max]	265 VAC, 300 VDC	265 - 300 VAC
Voltage - Supply [Min]	95 VDC, 85 VAC	85 - 95 VDC

LINE FREQUENCY 0-99.9 HZ BARGRAP

Part	Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Termination Style	Measuring Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Range [Min]	Measuring Range [Max]
Texmate FL-B101Q-HZ	Frequency Meter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Frequency	36.07 mm	144.53 mm
Texmate FL-B101Q-DCA	Ammeter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Current	36.07 mm	144.53 mm	0.02 VDC	0.2 VDC
Texmate FL-B101Q-ACV	Voltmeter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Voltage	36.07 mm	144.53 mm	200 VAC	600 VAC
Texmate FL-B101Q-ACA	Ammeter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Current	36.07 mm	144.53 mm	0 A	5 A
Texmate FL-B101Q-DCV	Process Meter		85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Process	36.07 mm	144.53 mm	2 VDC	200 V
