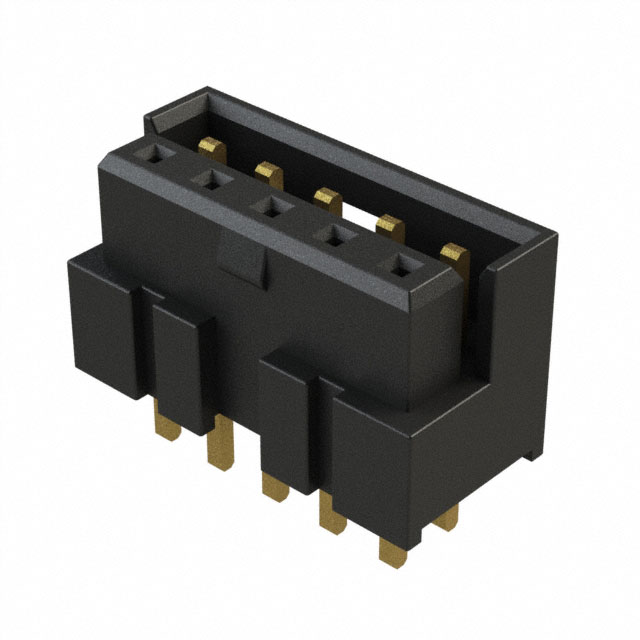

LS2-105-01-LM-D

Active

Samtec Inc.

CONN SELF-MATE 10POS VERT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

LS2-105-01-LM-D

Active

Samtec Inc.

CONN SELF-MATE 10POS VERT GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LS2-105-01-LM-D

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Latch Holder
Height Above Board	0.25 in
Height Above Board	6.35 mm
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm

LS2-105 Series

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Mounting Type	Contact Finish Thickness	Connector Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. LS2-105-02-FM-D	2	0.079 in	2 mm	Gold	10	Surface Mount	Flash	Self Mating Non-Gendered Hermaphroditic	8.38 mm	0.33 in	Latch Holder
Samtec Inc. LS2-105-02-S-D-TR	2	0.079 in	2 mm	Gold	10	Surface Mount		Self Mating Non-Gendered Hermaphroditic	8.38 mm	0.33 in	Latch Holder	0.76 Ám	30 Áin
Samtec Inc. LS2-105-01-S-D-RA1	2	0.079 in	2 mm	Gold	10	Through Hole Right Angle		Self Mating Non-Gendered Hermaphroditic	5.28 mm	0.208 in	Latch Holder	0.76 Ám	30 Áin
Samtec Inc. LS2-105-01-S-D-RA1-TR	2	0.079 in	2 mm	Gold	10	Through Hole Right Angle		Self Mating Non-Gendered Hermaphroditic	5.28 mm	0.208 in	Latch Holder	0.76 Ám	30 Áin
Samtec Inc. LS2-105-01-L-D-RA2-TR	2	0.079 in	2 mm	Gold	10	Through Hole Right Angle		Self Mating Non-Gendered Hermaphroditic	5.28 mm	0.208 in	Latch Holder	0.25 Ám	10 Áin
Samtec Inc. LS2-105-02-S-D-A	2	0.079 in	2 mm	Gold	10	Surface Mount		Self Mating Non-Gendered Hermaphroditic	8.38 mm	0.33 in	Board Guide Latch Holder	0.76 Ám	30 Áin
Samtec Inc. LS2-105-02-S-D-K-TR	2	0.079 in	2 mm	Gold	10	Surface Mount		Self Mating Non-Gendered Hermaphroditic	8.38 mm	0.33 in		0.76 Ám	30 Áin
Samtec Inc. LS2-105-01-FM-D	2	0.079 in	2 mm	Gold	10	Through Hole	Flash	Self Mating Non-Gendered Hermaphroditic	6.35 mm	0.25 in	Latch Holder
Samtec Inc. LS2-105-01-LM-D	2	0.079 in	2 mm	Gold	10	Through Hole		Self Mating Non-Gendered Hermaphroditic	6.35 mm	0.25 in	Latch Holder	0.25 Ám	10 Áin
Samtec Inc. LS2-105-02-F-D-K-TR	2	0.079 in	2 mm	Gold	10	Surface Mount	Flash	Self Mating Non-Gendered Hermaphroditic	8.38 mm	0.33 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.14

Description

General part information

LS2-105 Series

10 Position Connector Self Mating, Non-Gendered, Hermaphroditic Through Hole Gold

Documents

Technical documentation and resources

No documents available
