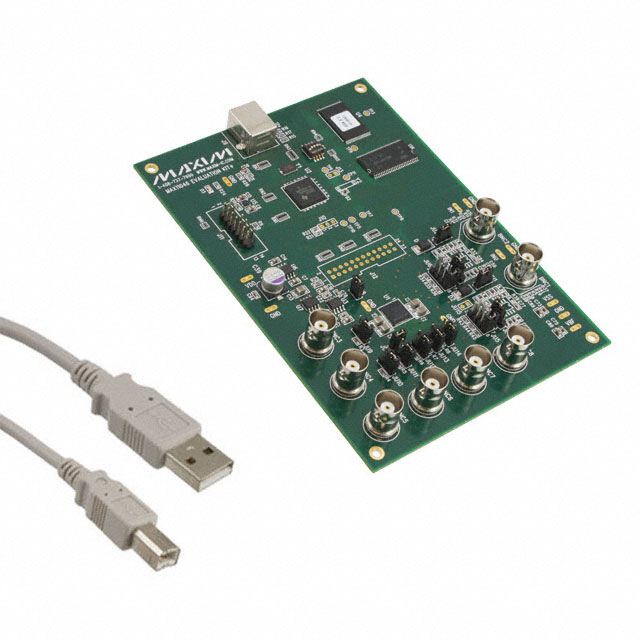

MAX11046EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11046
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11046EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11046
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11046EVKIT+ | MAX11046 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | S/H-ADC |
| Data Interface | Parallel | Parallel |
| Features | - | Simultaneous Sampling |
| Input Range [Max] | 5 V | 5 V |
| Input Range [Min] | -5 V | -5 V |
| Input Type | - | Single Ended |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 8 | 8 |
| Number of Bits | 16 | 16 |
| Number of Inputs | - | 8 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 64-TQFP Exposed Pad, 56-WFQFN Exposed Pad |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External, Internal |
| Sampling Rate (Per Second) | 250 k | 250 k |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 64-TQFP-EP (10x10), 56-TQFN (8x8) |
| Utilized IC / Part | MAX11046 | MAX11046 |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 5.25 V |
| Voltage - Supply, Digital | - | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 187.32 | |
MAX11046 Series
IC ADC 16BIT SAR 64TQFP
| Part | Data Interface | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Features | Architecture | Voltage - Supply, Analog | Package / Case | Number of A/D Converters | Input Type | Supplier Device Package | Sampling Rate (Per Second) | Ratio - S/H:ADC | Operating Temperature [Max] | Operating Temperature [Min] | Configuration | Reference Type | Mounting Type | Number of Inputs | Number of Bits | Utilized IC / Part | Input Range [Min] | Input Range [Max] | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11046ECB+ | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 64-TQFP Exposed Pad | 8 | Single Ended | 64-TQFP-EP (10x10) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 | ||||
Analog Devices Inc./Maxim Integrated MAX11046ETN+ | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 56-WFQFN Exposed Pad | 8 | Single Ended | 56-TQFN (8x8) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 | ||||
Analog Devices Inc./Maxim Integrated MAX11046BETN+ | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 56-WFQFN Exposed Pad | 8 | Single Ended | 56-TQFN (8x8) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 | ||||
Analog Devices Inc./Maxim Integrated MAX11046ETN+T | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 56-WFQFN Exposed Pad | 8 | Single Ended | 56-TQFN (8x8) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 | ||||
Analog Devices Inc./Maxim Integrated MAX11046BETN+T | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 56-WFQFN Exposed Pad | 8 | Single Ended | 56-TQFN (8x8) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 | ||||
Analog Devices Inc./Maxim Integrated MAX11046EVKIT+ | Parallel | 8 | 250 k | 16 | MAX11046 | -5 V | 5 V | Board(s), Cable(s) | |||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11046BECB+ | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 64-TQFP Exposed Pad | 8 | Single Ended | 64-TQFP-EP (10x10) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 | ||||
Analog Devices Inc./Maxim Integrated MAX11046BECB+T | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 64-TQFP Exposed Pad | 8 | Single Ended | 64-TQFP-EP (10x10) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 | ||||
Analog Devices Inc./Maxim Integrated MAX11046ECB+T | Parallel | 5.25 V | 2.7 V | Simultaneous Sampling | SAR | 5 V | 64-TQFP Exposed Pad | 8 | Single Ended | 64-TQFP-EP (10x10) | 250 k | 1:1 | 85 °C | -40 °C | S/H-ADC | External, Internal | Surface Mount | 8 | 16 |
Description
General part information
MAX11046 Series
MAX11046 - 16 Bit 250k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
