109BD12MA2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BD12MA2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 46.95

Description

General part information

109BD12 Series

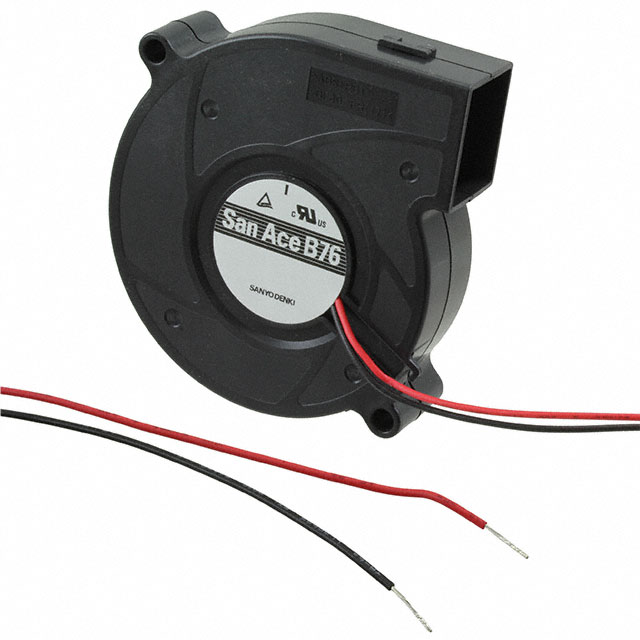

Fan Blower 12VDC Square/Rounded - 76mm L x 75.5mm H Ball 8.8 CFM (0.246mł/min) 2 Wire Leads

Documents

Technical documentation and resources

Number System Blower

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BD12MA2	109BD12 Series

Air Flow	8.8 CFM	8.8 - 10.9 CFM
Air Flow	0.246 mł/min	0.246 - 0.305 mł/min
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	140 mA	140 - 370 mA
Fan Type	Blower	Blower
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	32.5 dB	32.5 - 41.5 dB
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	1.68 W	1.68 - 4.44 W
RPM	2100 RPM	2100 - 3000 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	76 mm	76 mm
Size / Dimension [y]	75.5 mm	75.5 mm
Static Pressure	58.8 Pa	58.8 - 98.1 Pa
Static Pressure	0.236 in H2O	0.236 - 0.394 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	10.2 VDC	10.2 VDC
Weight	0.222 lb	0.222 lb
Weight	100.7 g	100.7 g
Width [y]	30 mm	30 mm

109BD12 Series

FAN BLOWER 76X30MM 12VDC WIRE

Part	Current Rating (Amps)	Termination	Noise	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Features	Air Flow	Air Flow	Material - Frame	Approval Agency	Material - Blade	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Static Pressure	Static Pressure	Lifetime @ Temp.	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Weight	Weight	Voltage - Rated	Width [y]
Sanyo Denki America Inc. 109BD12MD2	140 mA	3 Wire Leads	32.5 dB	10.2 VDC	13.8 VDC	1.68 W	Locked Rotor Sensor	0.246 mł/min	8.8 CFM	Plastic	CSA, TUV, UL	Plastic	Blower	75.5 mm	76 mm	Square/Rounded	58.8 Pa	0.236 in H2O	40000 Hrs	2100 RPM	-20 °C	70 °C	-20 C	70 °C	Ball	0.222 lb	100.7 g	12 VDC	30 mm
Sanyo Denki America Inc. 109BD12FA2	270 mA	2 Wire Leads	37 dB	10.2 VDC	13.8 VDC	3.24 W		0.305 mł/min	10.9 CFM	Plastic	CSA, TUV, UL	Plastic	Blower	75.5 mm	76 mm	Square/Rounded	98.1 Pa	0.394 in H2O	40000 Hrs	2600 RPM	-20 °C	70 °C	-20 C	70 °C	Ball	0.222 lb	100.7 g	12 VDC	30 mm
Sanyo Denki America Inc. 109BD12HD2	370 mA	3 Wire Leads	41.5 dB	10.2 VDC	13.8 VDC	4.44 W	Locked Rotor Sensor			Plastic	CSA, TUV, UL	Plastic	Blower	75.5 mm	76 mm	Square/Rounded			40000 Hrs	3000 RPM	-20 °C	60 °C	-20 C	60 °C	Ball	0.222 lb	100.7 g	12 VDC	30 mm
Sanyo Denki America Inc. 109BD12MA2	140 mA	2 Wire Leads	32.5 dB	10.2 VDC	13.8 VDC	1.68 W		0.246 mł/min	8.8 CFM	Plastic	CSA, TUV, UL	Plastic	Blower	75.5 mm	76 mm	Square/Rounded	58.8 Pa	0.236 in H2O	40000 Hrs	2100 RPM	-20 °C	70 °C	-20 C	70 °C	Ball	0.222 lb	100.7 g	12 VDC	30 mm
Sanyo Denki America Inc. 109BD12MC2	140 mA	3 Wire Leads	32.5 dB	10.2 VDC	13.8 VDC	1.68 W	Locked Rotor Protection, Speed Sensor (Tach)	0.246 mł/min	8.8 CFM	Plastic	CSA, TUV, UL	Plastic	Blower	75.5 mm	76 mm	Square/Rounded	58.8 Pa	0.236 in H2O	40000 Hrs	2100 RPM	-20 °C	70 °C	-20 C	70 °C	Ball	0.222 lb	100.7 g	12 VDC	30 mm
Sanyo Denki America Inc. 109BD12FD2	270 mA	3 Wire Leads	37 dB	10.2 VDC	13.8 VDC	3.24 W	Locked Rotor Sensor	0.305 mł/min	10.9 CFM	Plastic	CSA, TUV, UL	Plastic	Blower	75.5 mm	76 mm	Square/Rounded	98.1 Pa	0.394 in H2O	40000 Hrs	2600 RPM	-20 °C	70 °C	-20 C	70 °C	Ball	0.222 lb	100.7 g	12 VDC	30 mm
