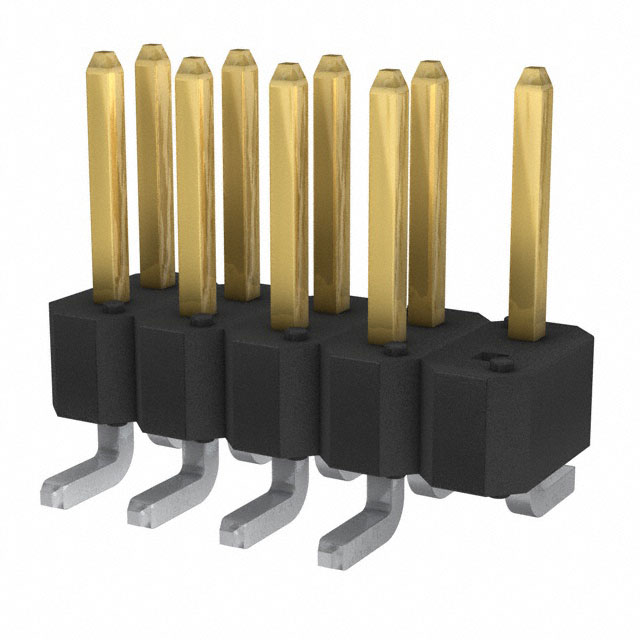

10118654-101ALF

Active

Amphenol ICC (FCI)

CONN HEADER SMD 10POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER SMD 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10118654-101ALF

Connector Type	Header
Contact Finish - Mating	Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	5.9 mm
Contact Length - Mating	0.232 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	9
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Finish - Mating	Termination	Contact Type	Number of Positions Loaded	Number of Positions	Insulation Material	Mounting Type	Insulation Color	Material Flammability Rating	Connector Type	Contact Material	Insulation Height	Insulation Height	Shrouding	Number of Rows	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Contact Finish - Post
Amphenol ICC (FCI) 10118654-802LF	5.9 mm	0.232 in	Push-Pull	Gold GXT™	Solder	Male Pin	9	10	Thermoplastic	Surface Mount	Black	UL94 V-0	Header	Phosphor Bronze	0.084 in	2.14 mm	Unshrouded	2	Square	15 µin	0.38 µm	2 çm	78.7 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	Board Guide	Tin
Amphenol ICC (FCI) 10118654-101ALF	5.9 mm	0.232 in	Push-Pull	Gold GXT™	Solder	Male Pin	9	10	Thermoplastic	Surface Mount	Black	UL94 V-0	Header	Phosphor Bronze	0.084 in	2.14 mm	Unshrouded	2	Square	30 Áin	0.76 Ám	2 çm	78.7 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	Board Guide Pick and Place	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 10 position 0.100" (2.54mm)
