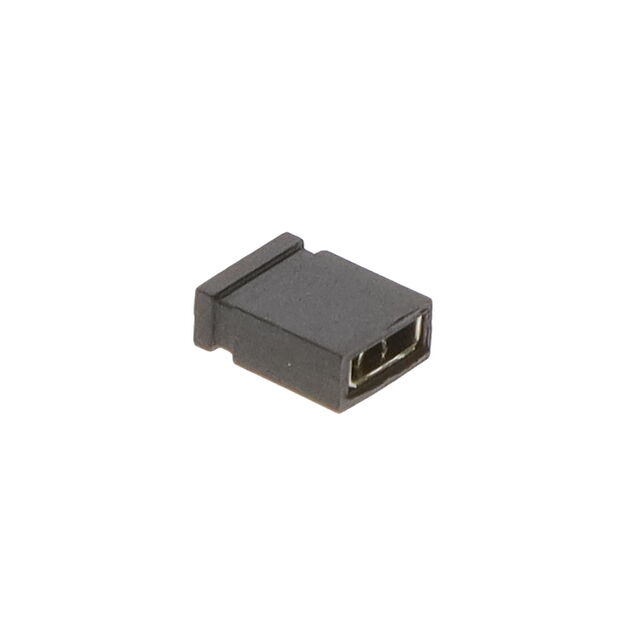

AKSCT/G BLACK

Active

Assmann WSW Components

CONN SHUNT 2.54MM GOLD 6.5MM BLK

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SHUNT 2.54MM GOLD 6.5MM BLK

Technical Specifications

Parameters and characteristics for this part

Specification	AKSCT/G BLACK

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	6.5 mm
Height [z]	0.256 "
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Closed Top

Part	Type	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Gender	Material Flammability Rating	Contact Finish	Color	Height [z]	Height [z]	Current Rating (Amps)	Pitch [x]	Pitch [x]	Contact Finish Thickness
Assmann WSW Components AKSCT/G BLACK	Closed Top	Polybutylene Terephthalate (PBT) Glass Filled	1 x 2	2	Female Sockets	UL94 V-0	Gold	Black	6.5 mm	0.256 "	3 A	2.54 mm	0.1 in	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Closed Top 0.100" (2.54mm) Gold
