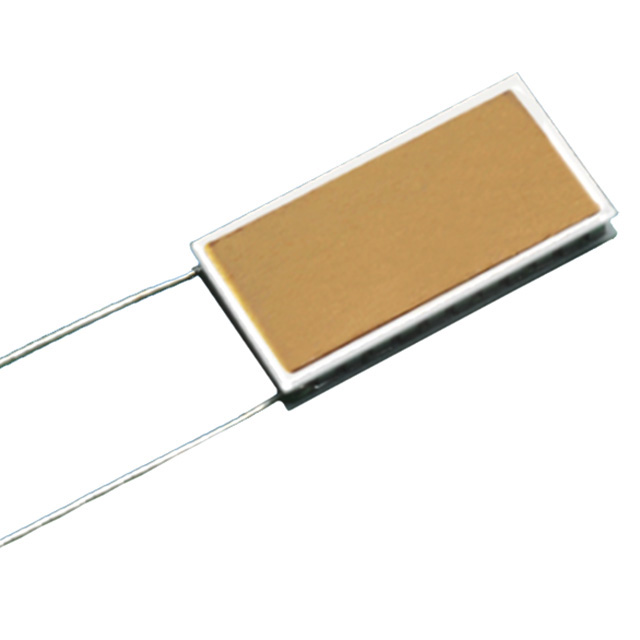

CM35-1.9-01AC

Active

Marlow Industries, Inc.

TEM 12.19X5.99X1.65MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 12.19X5.99X1.65MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CM35-1.9-01AC	CM35-1 Series

Current - Max [Max]	1.9 A	1.9 A
Delta Tmax @ Th	71 °C, 27 °C	27 - 71 °C
Features	Exterior Metallization (Both Sides), Lead Wires	Exterior Metallization (Both Sides), Lead Wires
Height [z]	1.65 mm	1.65 - 1.71 mm
Number of Stages	1	1
Qmax @ Th	5.2 W	5.2 W
Resistance	1.87 Ohms	1.87 Ohms
Size / Dimension [x]	12.19 mm	12.19 mm
Size / Dimension [y]	5.99 mm	5.99 mm
Voltage - Max [Max]	4.2 V	4.2 V

TEM 12.19X5.99X1.65MM

Part	Number of Stages	Current - Max [Max]	Voltage - Max [Max]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Height [z]	Features	Resistance
Marlow Industries, Inc. CM35-1.9-01AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C, 71 °C	1.65 mm	Exterior Metallization (Both Sides), Lead Wires	1.87 Ohms
Marlow Industries, Inc. CM35-1.9-09AN	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C, 71 °C	1.67 mm	Lead Wires	1.87 Ohms
Marlow Industries, Inc. CM35-1.9-04AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C, 71 °C	1.65 mm	Exterior Metallization (Both Sides), Lead Wires	1.87 Ohms
Marlow Industries, Inc. CM35-1.9-07AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C, 71 °C	1.65 mm		1.87 Ohms
Marlow Industries, Inc. CM35-1.9-05AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C, 71 °C	1.65 mm		1.87 Ohms
Marlow Industries, Inc. CM35-1.9-06AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C, 71 °C	1.65 mm		1.87 Ohms
Marlow Industries, Inc. CM35-1.9-08AN	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C, 71 °C	1.71 mm	Exterior Metallization (Both Sides), Lead Wires	1.87 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 5.2W @ 27°C 1.9 A 85°C
