Q-2J02S000H0.5M

Active

Amphenol Custom Cable

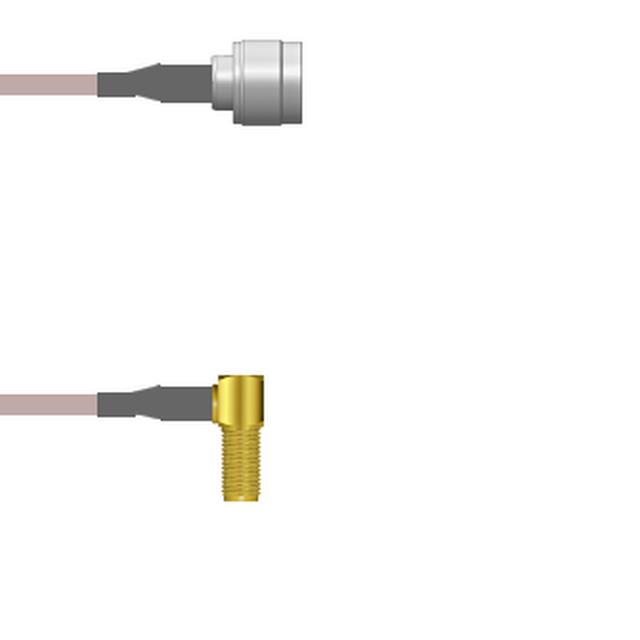

CBL ASSY SMA-NTYPE JCK-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2J02S000H0.5M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JCK-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2J02S000H0.5M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2J02S0 Series

Part	Frequency - Max [Max]	1st Connector Mounting Type	2nd Contact Gender	Cable Type	Color	2nd Connector	Length	Length	1st Contact Gender	Features	2nd Connector Mounting Type	Style	1st Connector	Overall Impedance	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2J02S000H012i	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	12 "	304.8 mm	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms
Amphenol Custom Cable Q-2J02S000H.25M	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug			Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-2J02S000H006i	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	6 in	152.4 mm	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms
Amphenol Custom Cable Q-2J02S000H001M	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	39.4 in	1 m	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms			3.3 ft
Amphenol Custom Cable Q-2J02S000H024i	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	24 "	609.6 mm	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms
Amphenol Custom Cable Q-2J02S000H0.5M	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	19.69 "	50 cm	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms
Amphenol Custom Cable Q-2J02S000H060i	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	5 '	1.5 m	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms			5 ft
Amphenol Custom Cable Q-2J02S000H009i	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	9 "	228.6 mm	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms
Amphenol Custom Cable Q-2J02S000H1.5M	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	59.1 in	1.5 m	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms			4.9 ft
Amphenol Custom Cable Q-2J02S000H.75M	11 GHz	Free Hanging (In-Line)	Male	RG-142	Copper	N-Type Plug	29.53 "	750 mm	Female	Shielded	Free Hanging (In-Line)	SMA to N-Type	Right Angle SMA Jack	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 114.48
		25	$ 112.24
		50	$ 110.01
		100	$ 107.77
		250	$ 105.54

Description

General part information

Q-2J02S0 Series

Cable Assembly Coaxial SMA to N-Type RG-142 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
