430104-512

Active

Laird Thermal Systems, Inc.

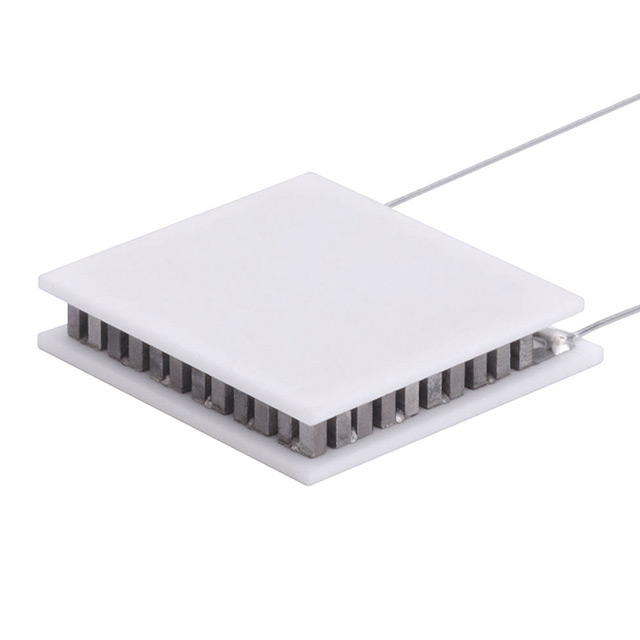

PELTIER HOT12,65,F2A,1312,TB,RT

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER HOT12,65,F2A,1312,TB,RT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	430104-512	430104 Series

Current - Max [Max]	1.2 A	1.2 A
Delta Tmax @ Th	67 °C	67 °C
Features	Sealed - Silicone RTV, Lead Wires	Sealed - Silicone RTV, Lead Wires, Lead Wires, Non-Sealed
Height [z]	2.69 mm	2.69 mm
Number of Stages	1	1
Operating Temperature	175 °C	175 °C
Qmax @ Th	5.3 W	5.3 W
Resistance	5.65 Ohms	5.65 Ohms
Size / Dimension [x]	13.16 mm	13.16 mm
Size / Dimension [y]	13.16 mm	13.16 mm
Voltage - Max [Max]	7.4 V	7.4 V

PELTIER HOT12,65,F2A,1312,TB,RT

Part	Operating Temperature	Features	Resistance	Current - Max [Max]	Height [z]	Voltage - Max [Max]	Number of Stages	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th
Laird Thermal Systems, Inc. 430104-512	175 °C	Lead Wires, Sealed - Silicone RTV	5.65 Ohms	1.2 A	2.69 mm	7.4 V	1	5.3 W	13.16 mm	13.16 mm	67 °C
Laird Thermal Systems, Inc. 430104-509	175 °C	Lead Wires, Non-Sealed	5.65 Ohms	1.2 A	2.69 mm	7.4 V	1	5.3 W	13.16 mm	13.16 mm	67 °C
