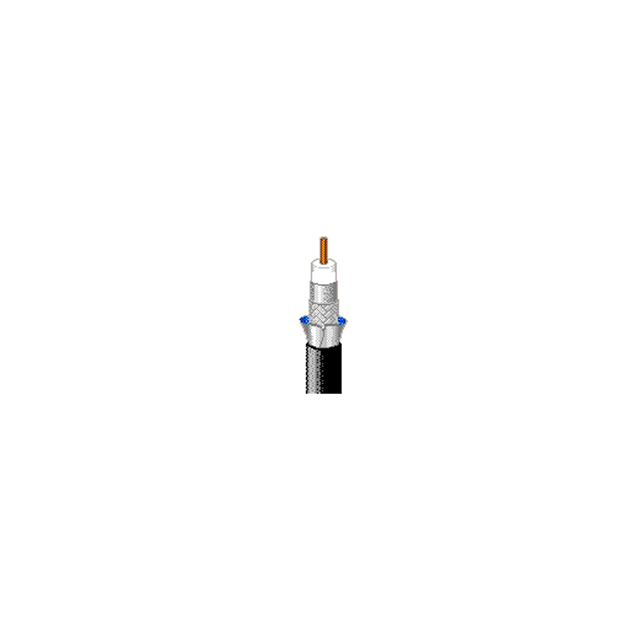

Specification	89292 0101000

Cable Group	RG-11
Cable Type	Plenum, Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter	0.274 in
Dielectric Material	Fluorinated Ethylene Propylene (FEP)
Impedance	75 Ohm
Jacket (Insulation) Diameter	0.346 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Black
Length	1000 ft
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-70 °C
Shield Coverage	65%, 100%
Shield Material	Aluminum, Tinned, Copper, Polyester
Shield Type	Braid, Foil
Usage	Video
Velocity of Propagation (VoP)	83 %
Wire Gauge	14 AWG

89292 Series

Part	Conductor Material	Shield Material	Velocity of Propagation (VoP)	Dielectric Material	Shield Coverage	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Diameter	Usage	Cable Group	Impedance	Jacket (Insulation) Material	Length	Jacket (Insulation) Diameter	Jacket Color	Shield Type	Wire Gauge	Cable Type	Conductor Strand
Belden Inc. 89292 0101000	Bare Copper	Aluminum Copper Polyester Tinned	83 %	Fluorinated Ethylene Propylene (FEP)	100% 65%	-70 °C	200 °C	0.274 in	Video	RG-11	75 Ohm	Fluorinated Ethylene-Propylene (FEP)	1000 ft	0.346 in	Black	Braid Foil	14 AWG	Coaxial Plenum	Solid
