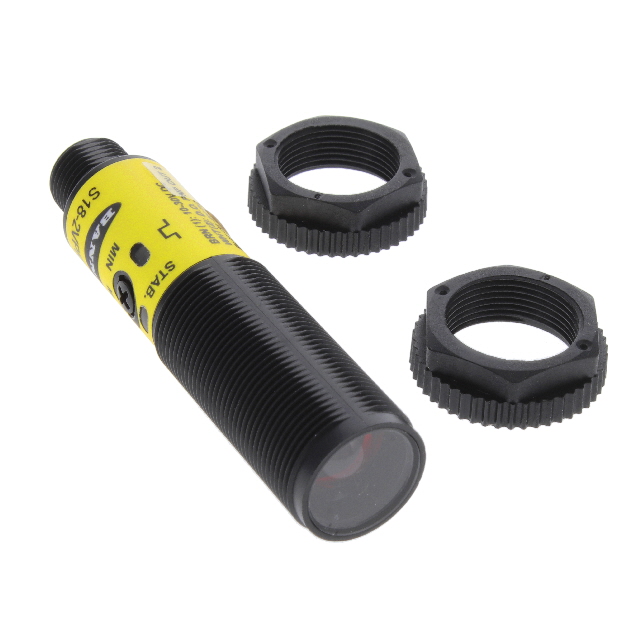

S18-2VPRS-Q8

Active

BANNER ENGINEERING

S18-2 SERIES: RECEIVER WITH POT<

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S18-2VPRS-Q8

Active

BANNER ENGINEERING

S18-2 SERIES: RECEIVER WITH POT<

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S18-2VPRS-Q8

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	1.5 ms
Sensing Distance	82.02 ft
Sensing Distance	25 m
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

S18-2V Series

Part	Connection Method	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Light Source	Sensing Distance	Sensing Distance	Cable Length	Cable Length
BANNER ENGINEERING S18-2VPDL-Q8	Connector	PNP - Dark-ON/Light-ON	-40 °C	70 °C	Diffuse	IEC IP67	30 VDC	10 VDC	1.5 ms	Red LED	750 mm	29.528 in
BANNER ENGINEERING S18-2VPRS-Q8	Cable	PNP - Dark-ON/Light-ON - Selectable	-40 °C	70 °C	Through-Beam	NEMA 6P IEC IP67	30 VDC	10 VDC	1.5 ms	LED	25 m	82.02 ft	78.74 in	2 m
BANNER ENGINEERING S18-2VNLP-2M	Cable	NPN - Dark-ON/Light-ON	-40 °C	70 °C	Polarized Retroreflective	IEC IP67	30 VDC	10 VDC	1.5 ms	Red LED	6 m	236.22 in	78.74 in	2 m
BANNER ENGINEERING S18-2VPFF150-Q8	Cable	PNP - Dark-ON/Light-ON - Selectable	-40 °C	70 °C	Background Suppression	NEMA 6P IEC IP67	30 VDC	10 VDC	1.5 ms	Red (624nm)	15 cm	5.906 in	78.74 in	2 m
BANNER ENGINEERING S18-2VPRL-2M	Cable	PNP - Dark-ON/Light-ON - Selectable	-40 °C	70 °C	Through-Beam	NEMA 6P IEC IP67	30 VDC	10 VDC	1.5 ms	LED	25 m	82.02 ft	78.74 in	2 m
BANNER ENGINEERING S18-2VPFF75-Q8	Connector	PNP - Dark-ON/Light-ON - Selectable	-40 °C	70 °C	Background Suppression	NEMA 6P IEC IP67	30 VDC	10 VDC	1.5 ms	Red LED	75 mm	2.953 in
BANNER ENGINEERING S18-2VPLP-Q8	Connector	PNP - Dark-ON/Light-ON	-40 °C	70 °C	Polarized Retroreflective	IEC IP67	30 VDC	10 VDC	1.5 ms	Red LED	6 m	236.22 in
BANNER ENGINEERING S18-2VPDS-2M	Cable	PNP - Dark-ON/Light-ON - Selectable	-40 °C	70 °C	Diffuse	NEMA 6P IEC IP67	30 VDC	10 VDC	1.5 ms	Red (624nm)	300 mm	11.811 in	78.74 in	2 m
BANNER ENGINEERING S18-2VNDL-2M	Cable	NPN - Dark-ON/Light-ON	-40 °C	70 °C	Diffuse	IEC IP67	30 VDC	10 VDC	1.5 ms	Red LED	750 mm	29.528 in	78.74 in	2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.00
Newark	Each	1	$ 53.00

Description

General part information

S18-2V Series

Through-Beam Optical Sensor 82.02' (25m) PNP - Dark-ON/Light-ON - Selectable
