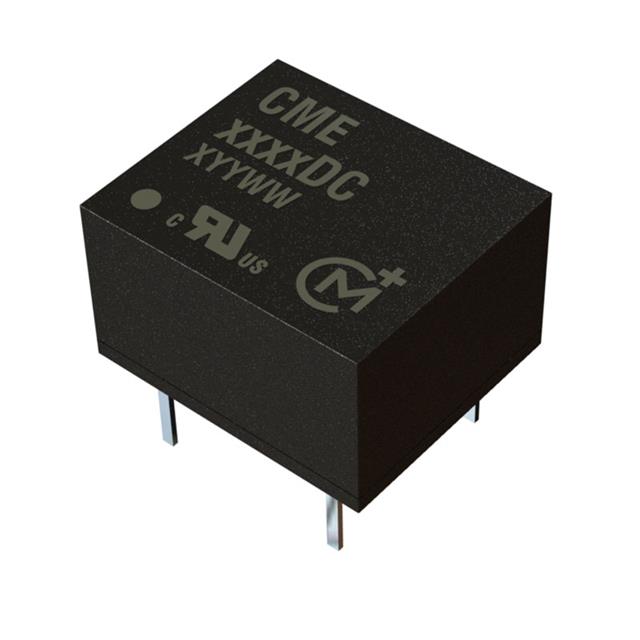

CME0505DC
ActiveMurata Power Solutions Inc.
ISOLATED BOARD MOUNT DC/DC CONVERTER, DIP, FIXED, THROUGH HOLE, 750 MW, 5 V, 150 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
CME0505DC
ActiveMurata Power Solutions Inc.
ISOLATED BOARD MOUNT DC/DC CONVERTER, DIP, FIXED, THROUGH HOLE, 750 MW, 5 V, 150 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CME0505DC | CME05 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 150 mA |
| Efficiency | - | 70 % |
| Features | - | SCP |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 4-SIP Module, 8-DIP Module |
| Package / Case | - | 4 Lead |
| Power (Watts) | - | 0.75 W |
| Size / Dimension | - | 11.5 mm |
| Size / Dimension | - | 0.27 - 0.39 in |
| Size / Dimension | - | 6.1 - 9.8 mm |
| Size / Dimension | - | 6.8 - 10 mm |
| Size / Dimension | - | 0.24 - 0.39 " |
| Size / Dimension | - | 0.45 in |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Isolation | - | 1000 - 3000 V |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CME05 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 750 MW, 1 OUTPUT, 5 V
| Part | Package / Case | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Voltage - Output 1 | Voltage - Isolation | Number of Outputs | Features | Efficiency | Applications | Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CME0505SPC | 4-SIP Module | 5.5 V | 85 °C | -40 °C | 150 mA | Through Hole | 4.5 V | 11.5 mm | 0.39 in | 6.1 mm | 10 mm | 0.24 " | 0.45 in | 0.75 W | 5 V | 3000 V | 1 | SCP | 70 % | ITE (Commercial) | Isolated Module | |
Murata Power Solutions Inc. CME0505SPC | ||||||||||||||||||||||
Murata Power Solutions Inc. CME0505SPC | ||||||||||||||||||||||
Murata Power Solutions Inc. CME0505DC | ||||||||||||||||||||||
Murata Power Solutions Inc. CME0505DC | 8-DIP Module | 5.5 V | 85 °C | -40 °C | 150 mA | Through Hole | 4.5 V | 11.5 mm | 0.27 " | 9.8 mm | 6.8 mm | 0.39 " | 0.45 in | 0.75 W | 5 V | 1000 V | 1 | 70 % | ITE (Commercial) | Isolated Module | 4 Lead |
Description
General part information
CME05 Series
Isolated Module DC DC Converter 1 Output 5V 150mA 4.5V - 5.5V Input
