8280-8PG-3DC

Active

Conxall/Switchcraft

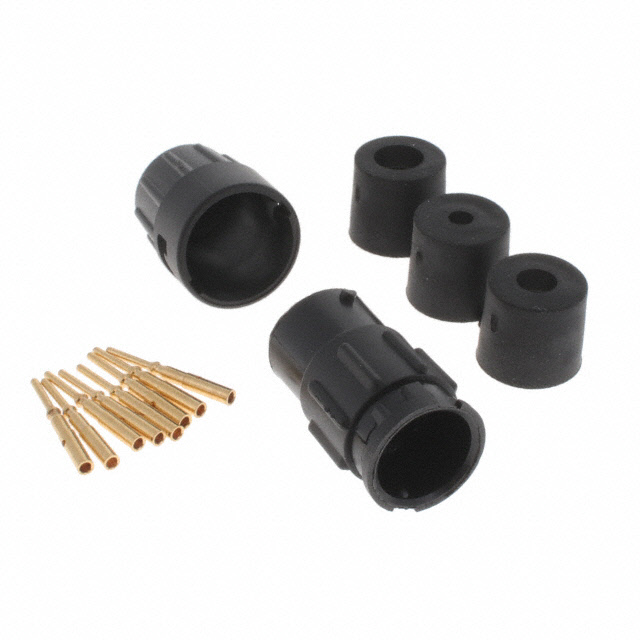

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-8PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.51
		10	$ 7.55
		25	$ 7.26
		50	$ 6.97
		100	$ 6.81

Description

General part information

8280-8PG Series

8 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8280-8PG-3DC	8280-8PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	5.33 - 5.59 mm
Cable Opening	-	5.84 mm
Cable Opening	-	0.21 - 0.22 in
Cable Opening	-	0.23 - 0.25 in
Cable Opening	-	6.35 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8280-8PG Series

CONN RCPT MALE 8POS GOLD CRIMP

Part	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Contact Finish - Mating	Features	Number of Positions	Color	Mounting Type	Termination	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Backshell Material, Plating	Applications	Current Rating (Amps)	Shielding	Fastening Type	Orientation	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-8PG-311	2.29 mm	0.09 in, 0.14 in	3.56 mm	Weathertight	Gold	Backshell	8	Black	Free Hanging (In-Line)	Crimp	Plastic	-40 °C	115 °C	Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Unshielded	Bayonet Lock	Keyed	600 V
Conxall/Switchcraft 8280-8PG-315				Weathertight	Gold	Backshell	8	Black	Free Hanging (In-Line)	Crimp	Plastic	-40 °C	115 °C	Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Unshielded	Bayonet Lock	Keyed	600 V	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 8280-8PG-321				Weathertight	Gold	Backshell	8	Black	Free Hanging (In-Line)	Crimp	Plastic	-40 °C	115 °C	Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Unshielded	Bayonet Lock	Keyed	600 V			5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 8280-8PG-3DC				Weathertight	Gold	Backshell	8	Black	Free Hanging (In-Line)	Crimp	Plastic	-40 °C	115 °C	Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Unshielded	Bayonet Lock	Keyed	600 V
Conxall/Switchcraft 8280-8PG-522				Weathertight	Gold	Backshell	8	Black	Free Hanging (In-Line)	Crimp	Plastic	-40 °C	115 °C	Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Unshielded	Bayonet Lock	Keyed	600 V			5.59 mm		0.22 in	0.25 in	6.35 mm
