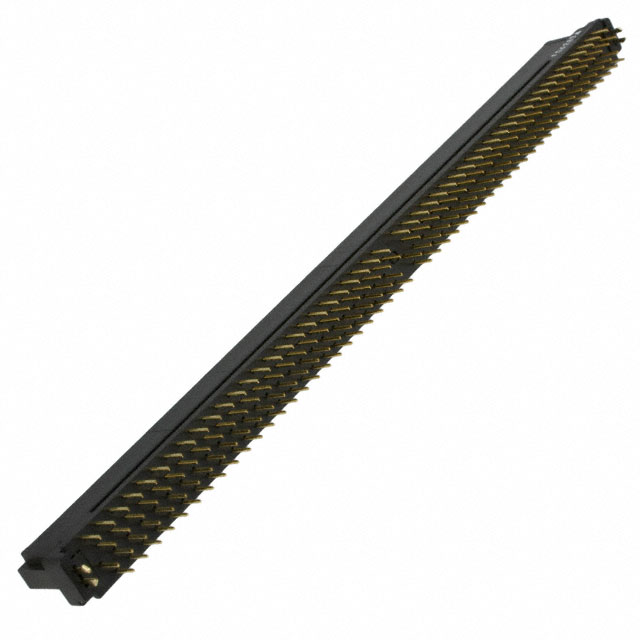

P50-200S-R1-EA
Active3M
1.27MM 2 200P STRAIGHT PLUGIN,P=1.27MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P50-200S-R1-EA
Active3M
1.27MM 2 200P STRAIGHT PLUGIN,P=1.27MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P50-200S-R1-EA | P50 Series |
|---|---|---|
| - | - | |
| Cable Termination | - | IDC |
| Color | - | Black |
| Connector Type | Socket, Outer Shroud Contacts | Socket, Outer Shroud Contacts, Plug |
| Contact Finish | Gold | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Finish - Post | - | Gold |
| Contact Finish Thickness | 10 Áin | 10 - 100 Áin |
| Contact Finish Thickness | 0.25 Ám | 0.25 - 2.54 Ám |
| Contact Finish Thickness - Mating | - | 10 çin |
| Contact Finish Thickness - Mating | - | 0.25 çm |
| Contact Finish Thickness - Post | - | Flash |
| Contact Length - Post | - | 0.118 in |
| Contact Length - Post | - | 3 mm |
| Contact Material | - | Phosphor Bronze |
| Contact Type | - | Center Strip Contact, Outer Shroud Contact |
| Current Rating (Amps) | - | 0.5 A |
| Fastening Type | - | Latch Holder, Latch Lock |
| Features | Flange, Board Lock | Flange, Board Lock, Board Guide, Ground Pin, Closed End, Strain Relief |
| Height Above Board | 0.421 in | 0.276 - 0.53 in |
| Height Above Board | 10.7 mm | 0.275 - 13.45 mm |
| Height Above Board | - | 6.99 - 11.7 mm |
| Height Above Board | - | 20 mm |
| Height Above Board | - | 0.787 in |
| Insulation Color | - | Black |
| Insulation Height | - | 7 mm |
| Insulation Height | - | 0.276 in |
| Insulation Material | - | Nylon, Polyamide (PA), Glass Filled |
| Mated Stacking Heights | - | 20 - 30 mm |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Through Hole, Right Angle, Free Hanging (In-Line) |
| Number of Positions | - | 20 - 180 |
| Number of Positions Loaded | - | All |
| Number of Rows | 2 | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -55 °C |
| Pitch - Mating | - | 0.05 in |
| Pitch - Mating | - | 1.27 mm |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Row Spacing | - | 1.27 mm |
| Row Spacing | - | 0.05 in |
| Shrouding | - | Shrouded - 4 Wall |
| Style | - | Board to Board, Cable |
| Termination | - | Solder |
| Wire Gauge | - | 28 AWG |
| Wire Type | - | Ribbon Cable |
P50 Series
1.27MM 2 200P STRAIGHT PLUGIN,P=1.27MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS
| Part | Mounting Type | Pitch [x] | Pitch [x] | Height Above Board | Height Above Board | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Rows | Height Above Board | Number of Positions | Mated Stacking Heights | Height Above Board [z] | Height Above Board [z] | Termination | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Color | Contact Finish Thickness - Post | Insulation Material | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Shrouding | Contact Material | Fastening Type | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Style | Color | Cable Termination | Wire Gauge | Wire Type | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Through Hole | 0.05 in | 1.27 mm | 0.421 in | 10.7 mm | Gold | Board Lock, Flange | 10 Áin | 0.25 Ám | Outer Shroud Contacts, Socket | 2 | ||||||||||||||||||||||||||||||||||||
Through Hole, Right Angle | 0.05 in | 1.27 mm | 0.275 in | Gold | Board Lock, Flange | 10 Áin | 0.25 Ám | 2 | 6.99 mm | 80 | ||||||||||||||||||||||||||||||||||||
Through Hole | 0.05 in | 1.27 mm | Gold | Board Guide | 2 | 40 | 20 mm | 20 mm | 0.787 in | |||||||||||||||||||||||||||||||||||||
Through Hole | 0.05 in | 1.27 mm | 0.421 in | 10.7 mm | Gold | Board Lock, Flange | 10 Áin | 0.25 Ám | Outer Shroud Contacts, Socket | 2 | 20 | |||||||||||||||||||||||||||||||||||
Through Hole, Right Angle | 0.05 in | 1.27 mm | 0.275 in | Gold | Ground Pin | 10 Áin | 0.25 Ám | 2 | 6.99 mm | 68 | ||||||||||||||||||||||||||||||||||||
Through Hole | 0.05 in | 1.27 mm | 0.421 in | 10.7 mm | Gold | Board Lock, Flange | 10 Áin | 0.25 Ám | Outer Shroud Contacts, Socket | 2 | 68 | |||||||||||||||||||||||||||||||||||
Through Hole | 0.05 in | 1.27 mm | 0.421 in | 10.7 mm | Gold | Flange | 10 Áin | 0.25 Ám | Outer Shroud Contacts, Socket | 2 | 100 | |||||||||||||||||||||||||||||||||||
Through Hole | 0.05 in | 1.27 mm | 0.421 in | 10.7 mm | Gold | Board Lock, Flange | 10 Áin | 0.25 Ám | Outer Shroud Contacts, Socket | 2 | 40 | |||||||||||||||||||||||||||||||||||
Through Hole | 0.05 in | 1.27 mm | 0.421 in | 10.7 mm | Gold | Board Lock, Flange | 10 Áin | 0.25 Ám | Outer Shroud Contacts, Socket | 2 | 26 | |||||||||||||||||||||||||||||||||||
Through Hole | 0.05 in | 1.27 mm | 0.421 in | 10.7 mm | Gold | Board Lock, Flange | 10 Áin | 0.25 Ám | Outer Shroud Contacts, Socket | 2 | 80 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
P50 Series
200 Position Connector Socket, Outer Shroud Contacts Through Hole Gold
