P50-020S-R1-EA

Active

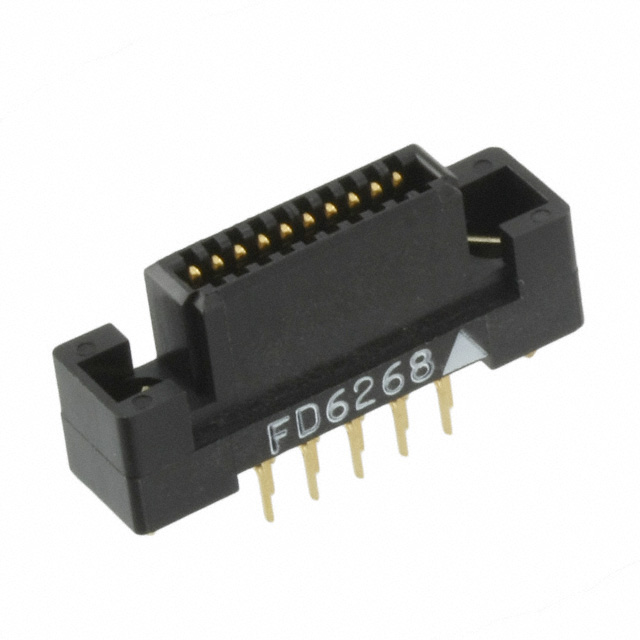

CONN RECTANGULAR SKT 20 POS 2.54MM SOLDER ST THRU-HOLE BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Mating Guide Datasheet

P50-020S-R1-EA

Active

CONN RECTANGULAR SKT 20 POS 2.54MM SOLDER ST THRU-HOLE BOX

Deep-Dive with AI

DocumentsInterconnect Mating Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.58
Newark	Each	100	$ 6.32
		250	$ 5.79
		500	$ 5.38
		1000	$ 5.06

Description

General part information

P50 Series

20 Position Connector Socket, Outer Shroud Contacts Through Hole Gold

Documents

Technical documentation and resources

Interconnect Mating Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P50-020S-R1-EA	P50 Series

	-	-
Cable Termination	-	IDC
Color	-	Black
Connector Type	Socket, Outer Shroud Contacts	Socket, Outer Shroud Contacts, Plug
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish - Post	-	Gold
Contact Finish Thickness	10 Áin	10 - 100 Áin
Contact Finish Thickness	0.25 Ám	0.25 - 2.54 Ám
Contact Finish Thickness - Mating	-	10 çin
Contact Finish Thickness - Mating	-	0.25 çm
Contact Finish Thickness - Post	-	Flash
Contact Length - Post	-	0.118 in
Contact Length - Post	-	3 mm
Contact Material	-	Phosphor Bronze
Contact Type	-	Center Strip Contact, Outer Shroud Contact
Current Rating (Amps)	-	0.5 A
Fastening Type	-	Latch Holder, Latch Lock
Features	Flange, Board Lock	Flange, Board Lock, Board Guide, Ground Pin, Closed End, Strain Relief
Height Above Board	0.421 in	0.276 - 0.53 in
Height Above Board	10.7 mm	0.275 - 13.45 mm
Height Above Board	-	6.99 - 11.7 mm
Height Above Board	-	20 mm
Height Above Board	-	0.787 in
Insulation Color	-	Black
Insulation Height	-	7 mm
Insulation Height	-	0.276 in
Insulation Material	-	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	-	20 - 30 mm
Material Flammability Rating	-	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Free Hanging (In-Line)
Number of Positions	20	20 - 180
Number of Positions Loaded	-	All
Number of Rows	2	2
Operating Temperature	-	85 °C
Operating Temperature	-	-55 °C
Pitch - Mating	-	0.05 in
Pitch - Mating	-	1.27 mm
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Row Spacing	-	1.27 mm
Row Spacing	-	0.05 in
Shrouding	-	Shrouded - 4 Wall
Style	-	Board to Board, Cable
Termination	-	Solder
Wire Gauge	-	28 AWG
Wire Type	-	Ribbon Cable

P50 Series

1.27MM 2 200P STRAIGHT PLUGIN,P=1.27MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Part	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Height Above Board	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
3M P50-200S-R1-EA	Through Hole	0.05 in	1.27 mm	0.421 in	10.7 mm	Gold	Board Lock, Flange	10 Áin	0.25 Ám	Outer Shroud Contacts, Socket	2
3M P50-080P-RR1-EA	Through Hole, Right Angle	0.05 in	1.27 mm		0.275 in	Gold	Board Lock, Flange	10 Áin	0.25 Ám		2	6.99 mm	80
3M P50-040P-S20-TGF	Through Hole	0.05 in	1.27 mm			Gold	Board Guide				2		40	20 mm	20 mm	0.787 in
3M P50-020S-R1-EA	Through Hole	0.05 in	1.27 mm	0.421 in	10.7 mm	Gold	Board Lock, Flange	10 Áin	0.25 Ám	Outer Shroud Contacts, Socket	2		20
3M P50-068PG-SR1-EA	Through Hole, Right Angle	0.05 in	1.27 mm		0.275 in	Gold	Ground Pin	10 Áin	0.25 Ám		2	6.99 mm	68
3M P50-068S-R1-EA	Through Hole	0.05 in	1.27 mm	0.421 in	10.7 mm	Gold	Board Lock, Flange	10 Áin	0.25 Ám	Outer Shroud Contacts, Socket	2		68
3M P50-100S-S1-EA	Through Hole	0.05 in	1.27 mm	0.421 in	10.7 mm	Gold	Flange	10 Áin	0.25 Ám	Outer Shroud Contacts, Socket	2		100
3M P50-040S-R1-TG	Through Hole	0.05 in	1.27 mm	0.421 in	10.7 mm	Gold	Board Lock, Flange	10 Áin	0.25 Ám	Outer Shroud Contacts, Socket	2		40
3M P50-026S-R1-EA	Through Hole	0.05 in	1.27 mm	0.421 in	10.7 mm	Gold	Board Lock, Flange	10 Áin	0.25 Ám	Outer Shroud Contacts, Socket	2		26
3M P50-080S-R1-TG	Through Hole	0.05 in	1.27 mm	0.421 in	10.7 mm	Gold	Board Lock, Flange	10 Áin	0.25 Ám	Outer Shroud Contacts, Socket	2		80
