ActiveMill-Max Manufacturing Corp.

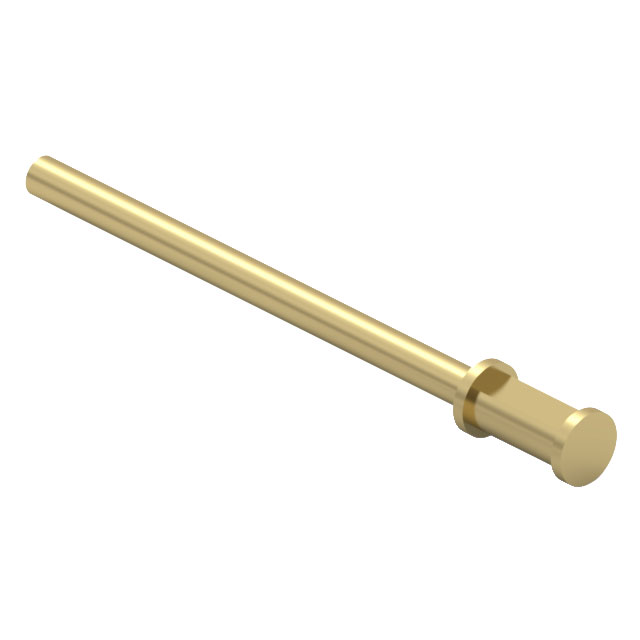

.560" LONG SOLDER PIN
Deep-Dive with AI
Search across all available documentation for this part.
5247-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
.560" LONG SOLDER PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5247-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 1.47 mm |
| Flange Diameter | 0.058 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 11.43 mm |
| Length - Above Flange [x] | 0.45 " |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall [x] | 14.22 mm |
| Length - Overall [x] | 0.56 in |
| Mounting Hole Diameter [diameter] | 0.035 in |
| Mounting Hole Diameter [diameter] | 0.89 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.79 mm |
| Pin Size - Above Flange [diameter] | 0.031 in |
| Pin Size - Below Flange [diameter] | 0.031 in |
| Pin Size - Below Flange [diameter] | 0.79 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
