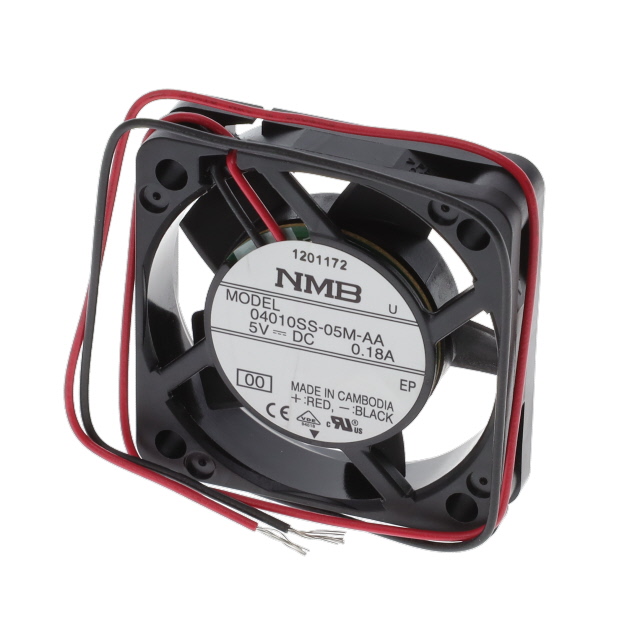

04010SS-05M-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 40 MM, 10 MM, SLEEVE BEARING, 5.6 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

04010SS-05M-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 40 MM, 10 MM, SLEEVE BEARING, 5.6 CFM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04010SS-05M-AA-00	04010SS Series

Air Flow	0.157 m³/min	0.137 - 0.188 mł/min
Air Flow	5.6 CFM	4.9 - 6.7 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	-	0.059 - 60 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart	Locked Rotor Sensor, Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	30000 Hrs	30000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	24 dB	21 - 29 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	0.65 W	0.4 - 850 mW
RPM	6500 RPM	5500 - 7500 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	-	27.4 - 49.8 Pa
Static Pressure	-	0.11 - 0.2 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	5 V	5 - 24 V
Voltage Range [Max]	5.5 V	5.5 - 26.4 V
Voltage Range [Min]	4.5 V	4.5 - 20 V
Weight	-	15.88 g
Weight	-	0.035 lb
Width [y]	10 mm	10 mm

04010SS Series

DC Fans DC Axial Fan, 40x40x10mm, 12VDC, 4.9CFM, Rib Mount, Sleeve Bearing, Lead Wires

Part	Current Rating (Amps)	Material - Blade	Width [y]	Material - Frame	Bearing Type	Voltage - Rated	Static Pressure	Static Pressure	Fan Type	RPM	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Termination	Power (Watts)	Features
NMB TECHNOLOGIES 04010SS-05N-AL-00	0.17 A	Plastic	10 mm	Plastic	Sleeve	5 V	49.8 Pa	0.2 in H2O	Tubeaxial	7500 RPM	0.188 mł/min	6.7 CFM	70 °C	70 °C	-10 °C	-10 °C	29 dB(A)	30000 Hrs	40 mm	Square	40 mm	4.5 V	5.5 V	3 Wire Leads	850 mW	Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-05M-AL-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial				70 °C	70 °C	-10 °C	-10 °C		30000 Hrs	40 mm	Square	40 mm			3 Wire Leads		Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-05L-AT-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial				70 °C	70 °C	-10 °C	-10 °C		30000 Hrs	40 mm	Square	40 mm			3 Wire Leads		Auto Restart, Speed Sensor (Tach)
NMB TECHNOLOGIES 04010SS-12M-AT-00	50 mA	Plastic	10 mm	Plastic	Sleeve	12 VDC			Tubeaxial	6500 RPM	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	24 dB	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	3 Wire Leads	600 mW	Auto Restart, Speed Sensor (Tach)
NMB TECHNOLOGIES 04010SS-05L-AL-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial				70 °C	70 °C	-10 °C	-10 °C		30000 Hrs	40 mm	Square	40 mm			3 Wire Leads		Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-05M-AT-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial	6500 RPM	0.157 m³/min	5.6 CFM	70 °C	70 °C	-10 °C	-10 °C	24 dB	30000 Hrs	40 mm	Square	40 mm	4.5 V	5.5 V	3 Wire Leads	0.65 W	Auto Restart, Speed Sensor (Tach)
NMB TECHNOLOGIES 04010SS-05L-AA-00	0.09 A	Plastic	10 mm	Plastic	Sleeve	5 V	27.4 Pa	0.11 in H2O	Tubeaxial	5500 RPM	0.137 m³/min	4.9 CFM	70 °C	70 °C	-10 °C	-10 °C	21 dB(A)	30000 Hrs	40 mm	Square	40 mm	4.5 V	5.5 V	2 Wire Leads	450 mW	Auto Restart
NMB TECHNOLOGIES 04010SS-12L-AL-00	0.33 A	Plastic	10 mm	Plastic	Sleeve	12 VDC	27.4 Pa	0.11 in H2O	Tubeaxial	5500 RPM	0.137 m³/min	4.9 CFM	70 °C	70 °C	-10 °C	-10 °C	21 dB(A)	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	3 Wire Leads	0.4 W	Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-12M-AL-00	50 mA	Plastic	10 mm	Plastic	Sleeve	12 VDC			Tubeaxial	6500 RPM	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	24 dB	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	3 Wire Leads	600 mW	Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-12L-AA-00	30 mA	Plastic	10 mm	Plastic	Sleeve	12 VDC	27.4 Pa	0.11 in H2O	Tubeaxial	5500 RPM	0.137 m³/min	4.9 CFM	70 °C	70 °C	-10 °C	-10 °C	21 dB(A)	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	2 Wire Leads	0.4 W	Auto Restart

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.44
		10	$ 5.74
		25	$ 5.49
		50	$ 5.30
		100	$ 5.12
		250	$ 4.89
		500	$ 4.72
Newark	Each	1	$ 7.17
		1080	$ 6.44
		1980	$ 6.34
		2520	$ 6.20
		5040	$ 6.11
		10080	$ 5.87

Description

General part information

04010SS Series

DC Fans DC Axial Fan, 40x40x10mm, 12VDC, 4.9CFM, Rib Mount, Sleeve Bearing, Lead Wires
