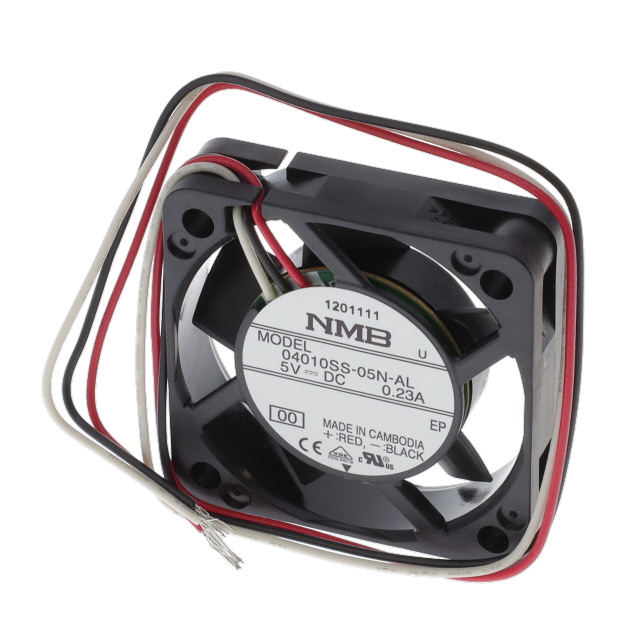

04010SS-05N-AL-00

Active

NMB TECHNOLOGIES

FAN AXIAL 40X10MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

04010SS-05N-AL-00

Active

NMB TECHNOLOGIES

FAN AXIAL 40X10MM 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.77
		10	$ 4.69
Newark	Each	1	$ 7.62
		1080	$ 6.89
		1980	$ 6.78
		2520	$ 6.64
		5040	$ 6.54
		10080	$ 6.32

Description

General part information

04010SS Series

DC Fans DC Axial Fan, 40x40x10mm, 12VDC, 4.9CFM, Rib Mount, Sleeve Bearing, Lead Wires

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04010SS-05N-AL-00	04010SS Series

Air Flow	0.188 mł/min	0.137 - 0.188 mł/min
Air Flow	6.7 CFM	4.9 - 6.7 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	0.17 A	0.059 - 60 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart	Locked Rotor Sensor, Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	30000 Hrs	30000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	29 dB(A)	21 - 29 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	850 mW	0.4 - 850 mW
RPM	7500 RPM	5500 - 7500 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	49.8 Pa	27.4 - 49.8 Pa
Static Pressure	0.2 in H2O	0.11 - 0.2 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	5 V	5 - 24 V
Voltage Range [Max]	5.5 V	5.5 - 26.4 V
Voltage Range [Min]	4.5 V	4.5 - 20 V
Weight	-	15.88 g
Weight	-	0.035 lb
Width [y]	10 mm	10 mm

04010SS Series

DC Fans DC Axial Fan, 40x40x10mm, 12VDC, 4.9CFM, Rib Mount, Sleeve Bearing, Lead Wires

Part	Current Rating (Amps)	Material - Blade	Width [y]	Material - Frame	Bearing Type	Voltage - Rated	Static Pressure	Static Pressure	Fan Type	RPM	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Termination	Power (Watts)	Features
NMB TECHNOLOGIES 04010SS-05N-AL-00	0.17 A	Plastic	10 mm	Plastic	Sleeve	5 V	49.8 Pa	0.2 in H2O	Tubeaxial	7500 RPM	0.188 mł/min	6.7 CFM	70 °C	70 °C	-10 °C	-10 °C	29 dB(A)	30000 Hrs	40 mm	Square	40 mm	4.5 V	5.5 V	3 Wire Leads	850 mW	Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-05M-AL-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial				70 °C	70 °C	-10 °C	-10 °C		30000 Hrs	40 mm	Square	40 mm			3 Wire Leads		Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-05L-AT-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial				70 °C	70 °C	-10 °C	-10 °C		30000 Hrs	40 mm	Square	40 mm			3 Wire Leads		Auto Restart, Speed Sensor (Tach)
NMB TECHNOLOGIES 04010SS-12M-AT-00	50 mA	Plastic	10 mm	Plastic	Sleeve	12 VDC			Tubeaxial	6500 RPM	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	24 dB	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	3 Wire Leads	600 mW	Auto Restart, Speed Sensor (Tach)
NMB TECHNOLOGIES 04010SS-05L-AL-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial				70 °C	70 °C	-10 °C	-10 °C		30000 Hrs	40 mm	Square	40 mm			3 Wire Leads		Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-05M-AT-00		Plastic	10 mm	Plastic	Sleeve	5 V			Tubeaxial	6500 RPM	0.157 m³/min	5.6 CFM	70 °C	70 °C	-10 °C	-10 °C	24 dB	30000 Hrs	40 mm	Square	40 mm	4.5 V	5.5 V	3 Wire Leads	0.65 W	Auto Restart, Speed Sensor (Tach)
NMB TECHNOLOGIES 04010SS-05L-AA-00	0.09 A	Plastic	10 mm	Plastic	Sleeve	5 V	27.4 Pa	0.11 in H2O	Tubeaxial	5500 RPM	0.137 m³/min	4.9 CFM	70 °C	70 °C	-10 °C	-10 °C	21 dB(A)	30000 Hrs	40 mm	Square	40 mm	4.5 V	5.5 V	2 Wire Leads	450 mW	Auto Restart
NMB TECHNOLOGIES 04010SS-12L-AL-00	0.33 A	Plastic	10 mm	Plastic	Sleeve	12 VDC	27.4 Pa	0.11 in H2O	Tubeaxial	5500 RPM	0.137 m³/min	4.9 CFM	70 °C	70 °C	-10 °C	-10 °C	21 dB(A)	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	3 Wire Leads	0.4 W	Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-12M-AL-00	50 mA	Plastic	10 mm	Plastic	Sleeve	12 VDC			Tubeaxial	6500 RPM	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	24 dB	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	3 Wire Leads	600 mW	Auto Restart, Locked Rotor Sensor
NMB TECHNOLOGIES 04010SS-12L-AA-00	30 mA	Plastic	10 mm	Plastic	Sleeve	12 VDC	27.4 Pa	0.11 in H2O	Tubeaxial	5500 RPM	0.137 m³/min	4.9 CFM	70 °C	70 °C	-10 °C	-10 °C	21 dB(A)	30000 Hrs	40 mm	Square	40 mm	10.2 VDC	13.8 VDC	2 Wire Leads	0.4 W	Auto Restart
