TMS-CT-50M-3/32-OUT-0

Active

TE Connectivity Raychem Cable Protection

CONTINUOUS TUBING METER

Deep-Dive with AI

Search across all available documentation for this part.

TMS-CT-50M-3/32-OUT-0

Active

TE Connectivity Raychem Cable Protection

CONTINUOUS TUBING METER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMS-CT-50M-3/32-OUT-0

Color	Black
Features	Fluid Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.79 mm
Inner Diameter - Recovered [diameter]	0.031 in
Inner Diameter - Supplied [diameter]	0.093 in
Inner Diameter - Supplied [diameter]	2.36 mm
Length	Enter Number of Meters in Order Quantity
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.58 mm
Recovered Wall Thickness	0.023 in
Shelf Life	48 Months
Shelf Life Start	Date of Manufacture
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

TMS-CT-50M Series

Part	Length	Length	Shelf Life Start	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Recovered Wall Thickness	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]
TE Connectivity Raychem Cable Protection TMS-CT-50M-1/4-OUT-2L	164 ft	50 m	Date of Manufacture	2.11 mm	0.083 "	0.25 in	6.35 mm	1	3	Polyolefin (PO) Irradiated	144 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	Red
TE Connectivity Raychem Cable Protection TMS-CT-50M-1/2-OUT-9			Date of Manufacture			0.5 in	12.7 mm	1	3	Polyolefin (PO) Irradiated	48 Months	0.024 in		Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	White	0.61 mm	Enter Number of Meters in Order Quantity	0.166 in	4.22 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-3/32-OUT-0			Date of Manufacture				0.093 in	1	3	Polyolefin (PO) Irradiated	48 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	Black		Enter Number of Meters in Order Quantity	0.031 in	0.79 mm	2.36 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-1/8-OUT-0			Date of Manufacture			0.125 "	3.18 mm	1	3	Polyolefin (PO) Irradiated	48 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	Black		Enter Number of Meters in Order Quantity	0.042 "	1.07 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-3/32-OUT-9			Date of Manufacture				0.093 in	1	3	Polyolefin (PO) Irradiated	48 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	White		Enter Number of Meters in Order Quantity	0.031 in	0.79 mm	2.36 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-3/16-OUT-2			Date of Manufacture			0.187 in	4.75 mm	1	3	Polyolefin (PO) Irradiated	144 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	Red		Enter Number of Meters in Order Quantity	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-3/32-OUT-4			Date of Manufacture				0.093 in	1	3	Polyolefin (PO) Irradiated	48 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	Yellow		Enter Number of Meters in Order Quantity	0.031 in	0.79 mm	2.36 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-1/8-OUT-3			Date of Manufacture			0.125 "	3.18 mm	1	3	Polyolefin (PO) Irradiated	48 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C			Enter Number of Meters in Order Quantity	0.042 "	1.07 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-1-OUT-0			Date of Manufacture					1	3	Polyolefin (PO) Irradiated	48 Months	0.024 in		Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	Black	0.61 mm	Enter Number of Meters in Order Quantity	0.25 in	6.35 mm
TE Connectivity Raychem Cable Protection TMS-CT-50M-3/16-OUT-4			Date of Manufacture			0.187 in	4.75 mm	1	3	Polyolefin (PO) Irradiated	48 Months	0.58 mm	0.023 in	Tubing Flexible	Flame Retardant Fluid Resistant	135 °C	-55 °C	Yellow		Enter Number of Meters in Order Quantity	0.062 in	1.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 7.99
		2	$ 7.35
		3	$ 7.00
		5	$ 6.58
		7	$ 6.32
		10	$ 6.05
		25	$ 5.42
		50	$ 4.98
		100	$ 4.58

Description

General part information

TMS-CT-50M Series

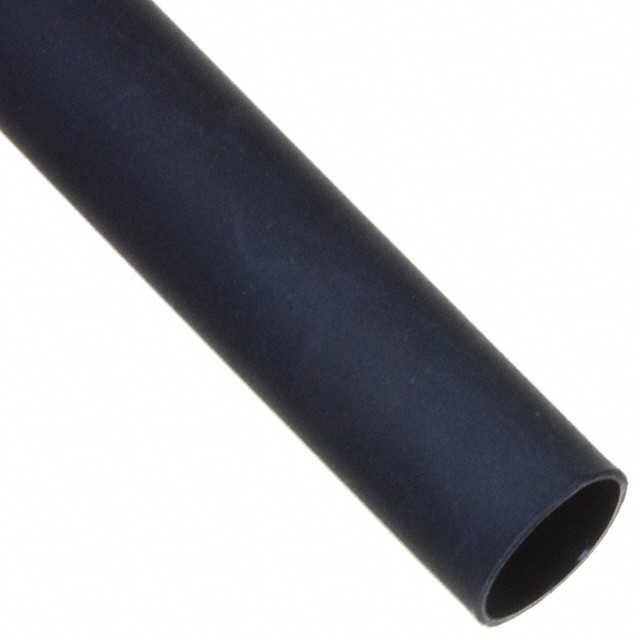

Heat Shrink Tubing, Flexible 0.093" (2.36mm) 3 to 1 Black Enter Number of Meters in Order Quantity

Documents

Technical documentation and resources

No documents available
