3-822516-4
ObsoleteTE Connectivity AMP Connectors
CONN SOCKET PLCC 52POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-822516-4
ObsoleteTE Connectivity AMP Connectors
CONN SOCKET PLCC 52POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-822516-4 | 822516 Series |
|---|---|---|
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze | Phosphor Bronze |
| Features | Closed Frame | Closed Frame |
| Housing Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions or Pins (Grid) | - | 4 |
| Number of Positions or Pins (Grid) | - | 28 - 44 |
| Number of Positions or Pins (Grid) | - | 7 - 17 |
| Number of Positions or Pins (Grid) | - | 68 |
| Number of Positions or Pins (Grid) | - | 4 - 11 |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Pitch - Post | 1.27 mm | 1.27 mm |
| Pitch - Post | 0.05 in | 0.05 in |
| Termination | Solder | Solder |
| Type | PLCC | PLCC |
822516 Series
CONN SOCKET PLCC 84POS TIN
| Part | Pitch - Mating | Pitch - Mating | Contact Material - Post | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Termination | Contact Finish - Post | Pitch - Post | Pitch - Post | Material Flammability Rating | Type | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Housing Material | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Finish - Mating | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-822516-6 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | ||||||
TE Connectivity AMP Connectors 822516-4 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | ||||||
TE Connectivity AMP Connectors 822516-2 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | 4 | 28 | 7 | |||
TE Connectivity AMP Connectors 822516-7 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | 32 | |||||
TE Connectivity AMP Connectors 3-822516-4 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | ||||||
TE Connectivity AMP Connectors 822516-6 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | ||||||
TE Connectivity AMP Connectors 3-822516-5 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | 4 | 17 | 68 | Tin-Lead | ||
TE Connectivity AMP Connectors 822516-1 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | 44 | 4, 11 | ||||
TE Connectivity AMP Connectors 3-822516-1 | 0.05 in | 1.27 mm | Phosphor Bronze | Phosphor Bronze | 2.54 µm | 100 µin | Surface Mount | Solder | Tin | 1.27 mm | 0.05 in | UL94 V-0 | PLCC | Closed Frame | 2.54 çm | 100 çin | Thermoplastic | 44 | 4, 11 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
822516 Series

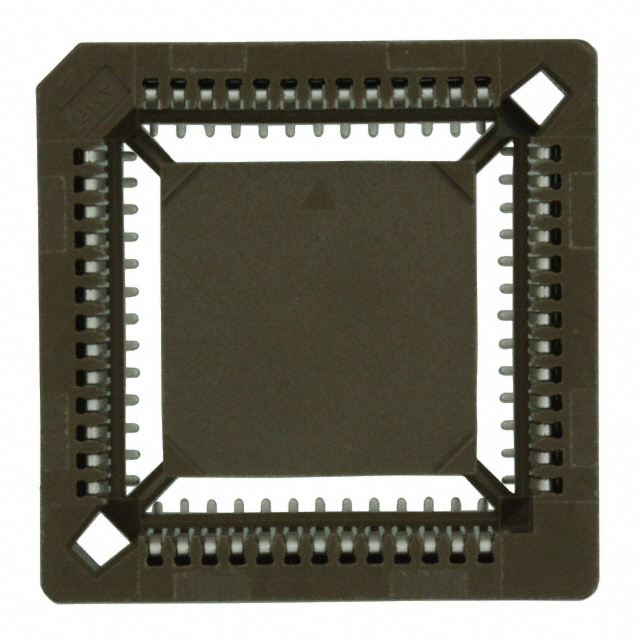

52 (4 x 13) Pos PLCC Socket Tin Surface Mount
