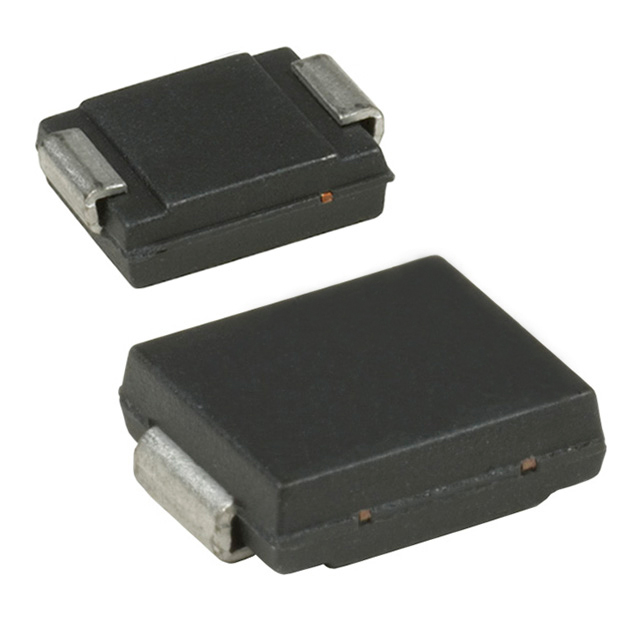

SM30T35CAY - 497-DO-214CA

SM30T35CAY

Active
STMicroelectronics

TRANSIENT VOLTAGE SUPPRESSOR, TVS, AEC-Q101 TRANSIL SM30TY SERIES, BIDIRECTIONAL, 30 V, DO-214AB, 2 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDS8599+17
SM30T35CAY - 497-DO-214CA

SM30T35CAY

Active
STMicroelectronics

TRANSIENT VOLTAGE SUPPRESSOR, TVS, AEC-Q101 TRANSIL SM30TY SERIES, BIDIRECTIONAL, 30 V, DO-214AB, 2 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetDS8599+17

Technical Specifications

Parameters and characteristics for this part

SpecificationSM30T35CAY
Bidirectional Channels [custom]1
Current - Peak Pulse (10/1000µs)62 A
GradeAutomotive
Mounting TypeSurface Mount
Operating Temperature [Max]175 ░C
Operating Temperature [Min]-55 °C
Package / CaseSMC, DO-214AB
Power - Peak Pulse3000 W
Power - Peak Pulse3 kW
Power Line ProtectionFalse
QualificationAEC-Q101
Supplier Device PackageSMC
TypeZener
Voltage - Breakdown (Min) [Min]33.3 V
Voltage - Clamping (Max) @ Ipp48.4 V
Voltage - Reverse Standoff (Typ)30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.41
10$ 1.16
100$ 0.90
500$ 0.76
1000$ 0.62
Digi-Reel® 1$ 1.41
10$ 1.16
100$ 0.90
500$ 0.76
1000$ 0.62
Tape & Reel (TR) 2500$ 0.58
5000$ 0.56
12500$ 0.53
NewarkEach 1$ 1.12
10$ 0.88
100$ 0.69
500$ 0.64
1000$ 0.62

Description

General part information

SM30T35CAY Series

The SM30TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605.

The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long-term reliability and stability.
