IXYA50N65C3

Active

IXYS

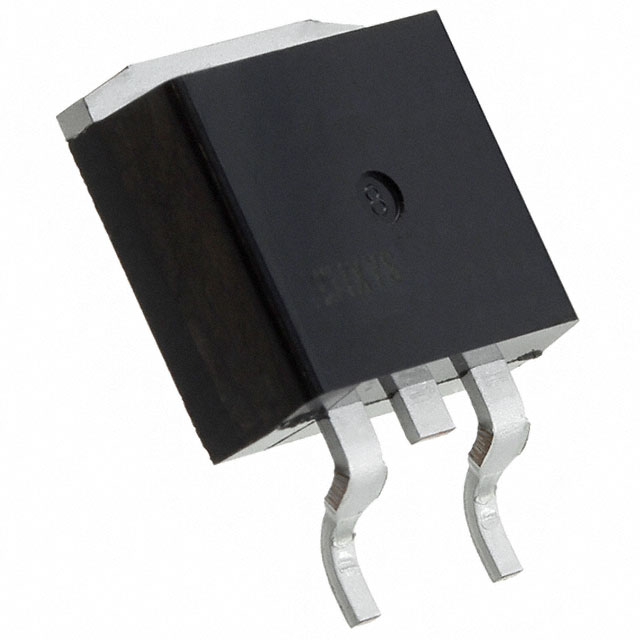

IGBT 650V 130A 600W TO263

Search across all available documentation for this part.

Active

IXYS

IGBT 650V 130A 600W TO263

Technical Specifications

Parameters and characteristics for this part

Specification	IXYA50N65C3

Current - Collector (Ic) (Max) [Max]	130 A
Current - Collector Pulsed (Icm)	250 A
Gate Charge	80 nC
IGBT Type	PT
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power - Max [Max]	600 W
Supplier Device Package	TO-263AA
Switching Energy	370 µJ, 1.3 mJ
Td (on/off) @ 25°C	80 ns, 22 ns
Test Condition	400 V, 36 A, 15 V, 5 Ohm
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Package / Case	Power - Max [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Td (on/off) @ 25°C	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge	Vce(on) (Max) @ Vge, Ic	Test Condition	Current - Collector Pulsed (Icm)	Voltage - Collector Emitter Breakdown (Max)	Switching Energy	IGBT Type
IXYS IXYA50N65C3	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	600 W	TO-263AA	130 A	22 ns 80 ns	Surface Mount	-55 °C	175 ░C	80 nC	2.1 V	5 Ohm 15 V 36 A 400 V	250 A	650 V	1.3 mJ 370 µJ	PT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 4.97

General part information

IGBT PT 650 V 130 A 600 W Surface Mount TO-263AA
