HSS-109-S-2

Active

Samtec Inc.

.100" HIGH-TEMP SINGLE ROW SCREW

Search across all available documentation for this part.

Active

Samtec Inc.

.100" HIGH-TEMP SINGLE ROW SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	HSS-109-S-2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Brass, Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Contact Material	Fastening Type	Number of Positions	Number of Rows	Termination	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Finish - Mating	Contact Type	Number of Positions Loaded	Mounting Type	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. HSS-109-S-2	0.1 in	2.54 mm	Beryllium Copper Brass	Push-Pull	9	1	Solder	Tin	3.18 mm	0.125 in	Receptacle	Gold	Female Socket	All	Through Hole	Circular	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Black	-55 °C	125 °C	10 çin	0.25 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

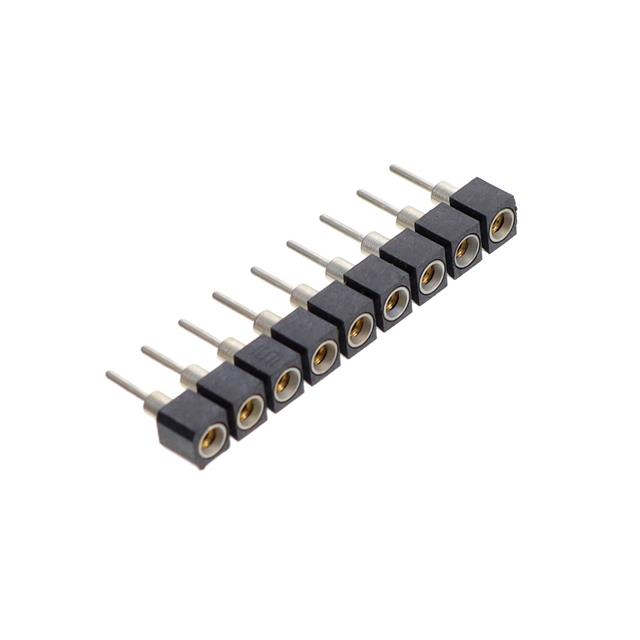

9 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
