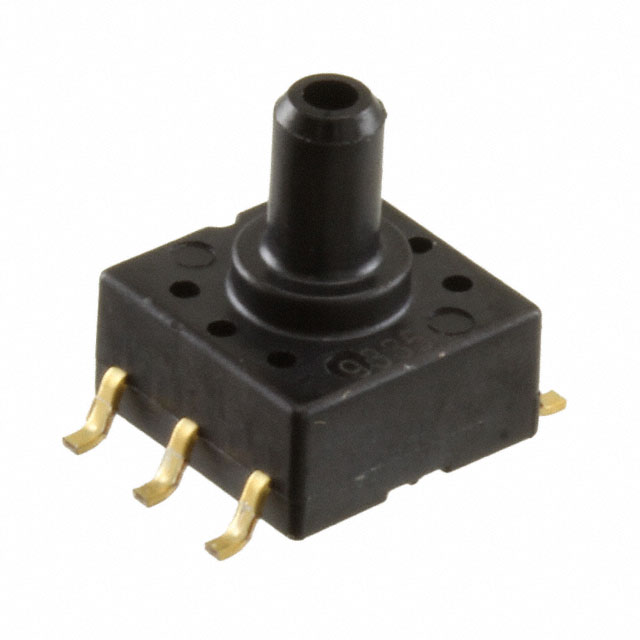

ADP4932
ActivePanasonic Industrial Automation Sales
SENSOR 14.23PSIG 0.1" .065V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADP4932
ActivePanasonic Industrial Automation Sales
SENSOR 14.23PSIG 0.1" .065V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP4932 |
|---|---|
| Accuracy | 1 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 28.46 PSI |
| Maximum Pressure [Max] | 196.22 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 14.23 PSI |
| Operating Pressure | 98.1 kPa |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 65 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 6-SMD Module |
| Port Size | 2.5 mm |
| Port Size | Male, Tube |
| Port Size | 0.1 " |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.20 | |
| 5 | $ 20.40 | |||
| 10 | $ 18.96 | |||
| 25 | $ 17.21 | |||
| 40 | $ 16.38 | |||
| 80 | $ 15.22 | |||
| 440 | $ 12.71 | |||
Description
General part information
ADP493 Series
Pressure Sensor 14.23PSI (98.1kPa) Vented Gauge Male - 0.1" (2.5mm) Tube 0 mV ~ 65 mV 6-SMD Module
