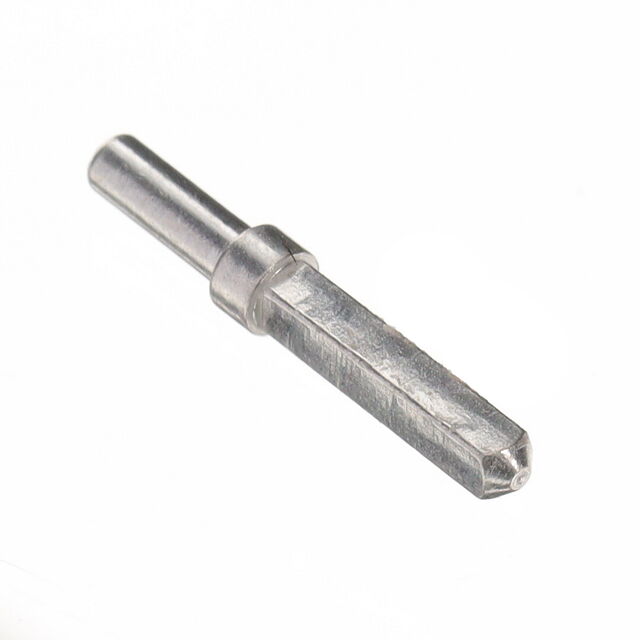

0600-0-05-80-00-00-01-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0600-0-05-80-00-00-01-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.78 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.81 mm |
| Length - Above Flange [x] | 0.15 in |
| Length - Below Flange [x] | 0.25 in |
| Length - Below Flange [x] | 6.35 mm |
| Length - Overall [x] | 0.44 in |
| Length - Overall [x] | 11.18 mm |
| Mounting Hole Diameter [diameter] | 1.32 mm |
| Mounting Hole Diameter [diameter] | 0.052 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.22 mm |
| Pin Size - Above Flange [diameter] | 0.048 " |
| Pin Size - Below Flange | 0.047 in |
| Pin Size - Below Flange | 1.19 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.77 | |
| 10 | $ 0.65 | |||
| 100 | $ 0.58 | |||
| 1000 | $ 0.42 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.35 | |||
Description
General part information
0600-0 Series
PC Pin Terminal Connector Through Hole Tin 0.048" (1.22mm) Dia
