054596 Series

Part	Pitch	Number of Rows	Wire Type	Contact Finish Thickness	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Positions	Connector Type	Color	Contact Finish	Contact Type	Mounting Type	Cable Termination
Molex 0545960410	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	4	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC

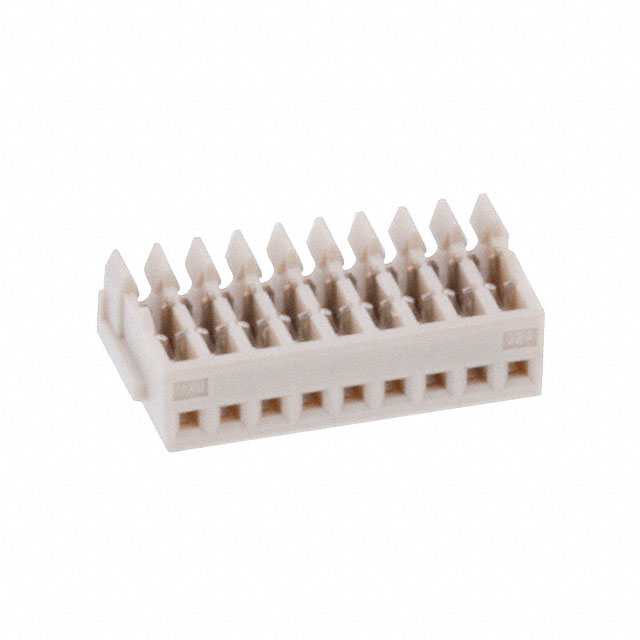

Molex 0545960910	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	9	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
Molex 0545961410	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	14	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
Molex 0545960710	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	7	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
Molex 0545960610	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	6	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
Molex 0545960310	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	3	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
Molex 0545960210	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	2	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
Molex 0545960810	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	8	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
Molex 0545961110	0.049 in	1	Discrete	35.4 µin	26 AWG	28 AWG	11	Receptacle	Natural	Tin	Female Socket	Free Hanging (In-Line)	IDC
