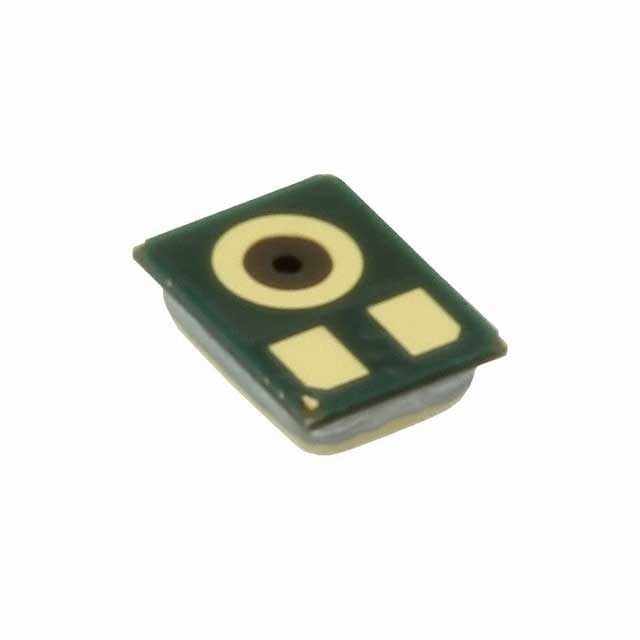

MP23AB02TR
ActiveSTMicroelectronics
MIC MEMS ANALOG OMNI -38DB
Deep-Dive with AI
Search across all available documentation for this part.
MP23AB02TR
ActiveSTMicroelectronics
MIC MEMS ANALOG OMNI -38DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP23AB02TR |
|---|---|
| Current - Supply | 220 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 20 Hz |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 64 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 3.35 mm |
| Size / Dimension [x] | 0.132 " |
| Size / Dimension [y] | 0.098 in |
| Size / Dimension [y] | 2.5 mm |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MP23AB02 Series
20 Hz ~ 20 kHz Analog Microphone MEMS (Silicon) Omnidirectional (-38dB ±3dB @ 94dB SPL) Solder Pads
