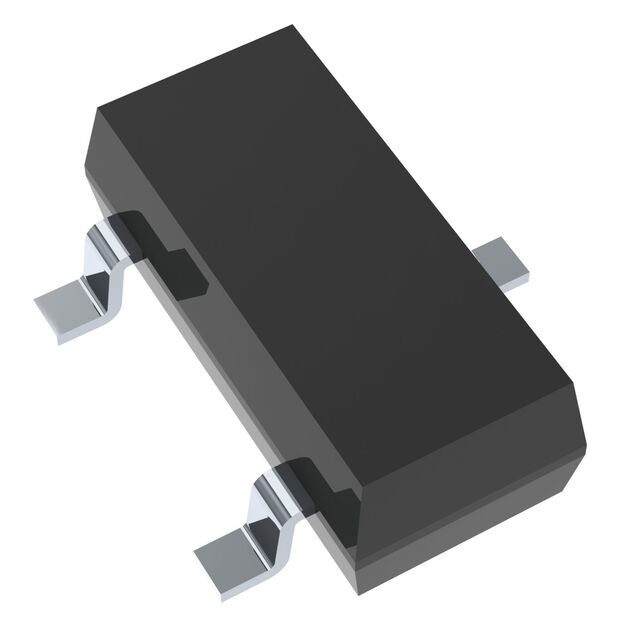

ADTA114ECA-HF

Active

Comchip Technology

TRANS PREBIAS PNP 50V SOT23-3

Search across all available documentation for this part.

Active

Comchip Technology

TRANS PREBIAS PNP 50V SOT23-3

Technical Specifications

Parameters and characteristics for this part

Specification	ADTA114ECA-HF

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 hFE
Frequency - Transition	250 MHz
Grade	Automotive
Mounting Type	Surface Mount
Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	200 mW
Qualification	AEC-Q101
Resistor - Base (R1)	10 kOhms
Resistor - Emitter Base (R2)	10 kOhms
Supplier Device Package	SOT-23-3
Transistor Type	PNP - Pre-Biased
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

TRANS PREBIAS PNP 50V SOT23-3

Part	Qualification	Grade	Transistor Type	Mounting Type	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Frequency - Transition	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Resistor - Emitter Base (R2)	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Resistor - Base (R1)
Comchip Technology ADTA114ECA-HF	AEC-Q101	Automotive	PNP - Pre-Biased	Surface Mount	100 mA	500 nA	SOT-23-3	250 MHz	200 mW	300 mV	SC-59, SOT-23-3, TO-236-3	10 kOhms	50 V	30 hFE	10 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 250 MHz 200 mW Surface Mount SOT-23-3
