963120-1
ActiveTE Connectivity AMP Connectors

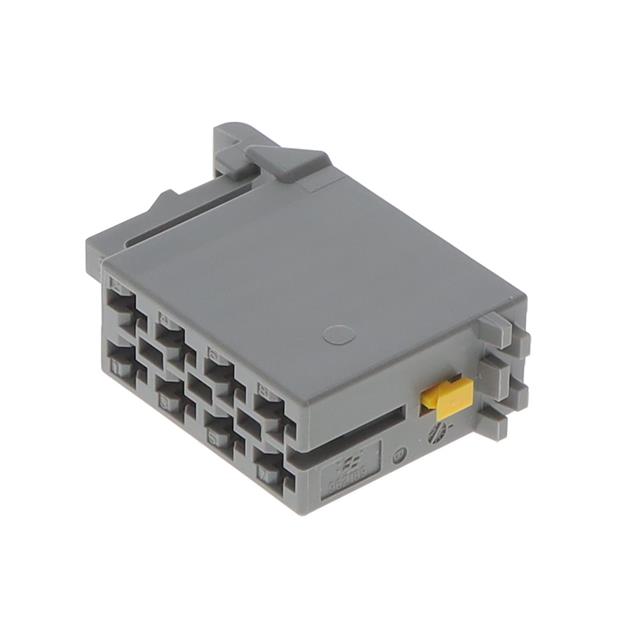

CONN RCPT HSG 8POS 6.00MM
Deep-Dive with AI
Search across all available documentation for this part.
963120-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 8POS 6.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 963120-1 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Pitch [x] | 0.236 in |
| Pitch [x] | 6 mm |
| Row Spacing | 5 mm |
| Row Spacing | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.15 | |
| 10 | $ 1.92 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.73 | |||
| 250 | $ 1.72 | |||
| 600 | $ 1.57 | |||
| 1200 | $ 1.40 | |||
| 3000 | $ 1.29 | |||
963120 Series
CONN RCPT HSG 8POS 6.00MM
| Part | Row Spacing | Row Spacing | Insulation Material | Contact Type | Color | Note | Fastening Type | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Connector Type | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 963120-1 | 5 mm | 0.197 in | Polybutylene Terephthalate (PBT) | Female Socket | Gray | Contacts Not Included | Latch Lock | 8 | 0.236 in | 6 mm | 2 | Receptacle | Crimp | Free Hanging (In-Line) |
Description
General part information
963120 Series
8 Rectangular Connectors - Housings Receptacle Gray 0.236" (6.00mm)
